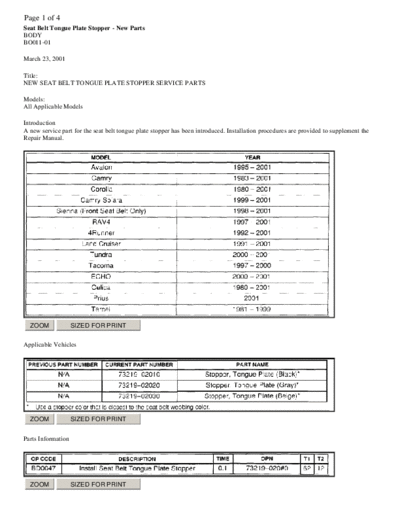

Page 1 of 4
Seat Belt Tongue Plate Stopper - New Parts
BODY
BO011-01

March 23, 2001

Title:
NEW SEAT BELT TONGUE PLATE STOPPER SERVICE PARTS

Models:
All Applicable Models

Introduction
A new service part for the seat belt tongue plate stopper has been introduced. Installation procedures are provided to supplement the
Repair Manual.




  ZOOM              SIZED FOR PRINT


Applicable Vehicles




  ZOOM              SIZED FOR PRINT


Parts Information




  ZOOM              SIZED FOR PRINT
Page 2 of 4
Warranty Information

APPLICABLE WARRANTY*:
This repair is covered under the Toyota comprehensive warranty. THIS warranty is in effect for 36 months or 36,000 miles, whichever
occurs first, from the vehicle's in -service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Installation Procedure

1. Preparation




  ZOOM           SIZED FOR PRINT


 A. Shift the Tongue Plate to the upper portion of the Tongue Plate Stopper, and temporarily hold it with a clip or tape.
 B. Remove any pieces of the original Tongue Plate Stopper in the webbing, with a pair of pliers.
CAUTION: Damaged or weakened seat belts may break in an accident and injure the occupant. The seat belt assembly must be
replaced if:
 ^ The webbing is cut, frayed, worn, or damaged.
 ^ It has been used in a severe impact.
Inspect the entire length of webbing for damage and replace the assembly if needed. Be careful not to damage the webbing during
repair.

2. Install the New Tongue Plate Stopper

   A. Install a new Tongue Plate Stopper in the hole of the webbing.




  ZOOM           SIZED FOR PRINT


NOTE: Be aware of the installation direction of the Tongue Plate Stopper as shown in the illustration.
Page 3 of 4




  ZOOM           SIZED FOR PRINT


B. Pinch the Tongue Plate Stopper into the webbing using an adjustable wrench, and turn and push the adjustment screw by hand.




  ZOOM           SIZED FOR PRINT


HINT: Press the adjustment screw in order to position the male and female parts of the Tongue Plate Stopper parallel to each other, as
shown in illustration.

CAUTION: DO NOT use pliers. They may damage the webbing.
Page 4 of 4




 ZOOM            SIZED FOR PRINT


C. When the adjustment screw for the adjustable wrench can't be turned by hand, tighten the adjustment screw using a pair of
   adjustable joint pliers until the space between jaws of the adjustable wrench is 4.5 - 5.0 mm. (See illustrations.)




 ZOOM            SIZED FOR PRINT


D. Check to be sure that the male pin of the Tongue Plate Stopper has become deformed evenly in the hole of the female part and is
   firmly held to the belt webbing. (See illustrations.)
