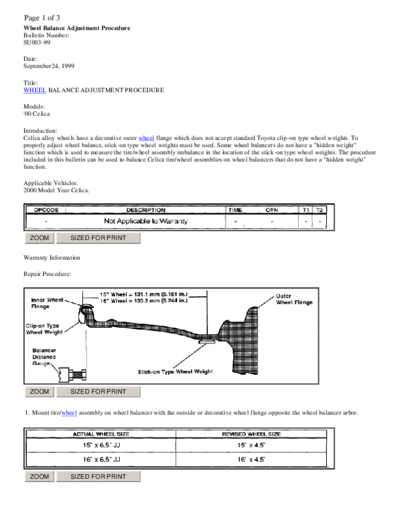

TSB_WHEEL_BALANCE_ADJUSTMENT


>> Download TSB_WHEEL_BALANCE_ADJUSTMENT documenatation <<

Text preview - extract from the document
Page 1 of 3
Wheel Balance Adjustment Procedure
Bulletin Number:
SU003-99

Date:
September24, 1999

Title:
WHEEL BALANCE ADJUSTMENT PROCEDURE

Models:
'00 Celica

Introduction:
Celica alloy wheels have a decorative outer wheel flange which does not accept standard Toyota clip-on type wheel weights. To
properly adjust wheel balance, stick-on type wheel weights must be used. Some wheel balancers do not have a "hidden weight"
function which is used to measure the tire/wheel assembly imbalance in the location of the stick-on type wheel weights. The procedure
included in this bulletin can be used to balance Celica tire/wheel assemblies on wheel balancers that do not have a "hidden weight"
function.

Applicable Vehicles:
2000 Model Year Celica.




  ZOOM           SIZED FOR PRINT


Warranty Information

Repair Procedure:




  ZOOM           SIZED FOR PRINT


1. Mount tire/wheel assembly on wheel balancer with the outside or decorative wheel flange opposite the wheel balancer arbor.




  ZOOM           SIZED FOR PRINT
Page 2 of 3
2. Input the revised wheel dimensions as shown:
3. Select "Wheel Flange" as the wheel weight location (clip -on type wheel weight).
4. Set the Wheel Distance (distance from inner wheel flange to a reference point on the wheel balancer) as normal.
5. Measure the tire/wheel assembly imbalance.
6. Choose the Conversion Weight for the stick-on type wheel weight using the Conversion Table below. The Conversion Weight is
   listed next to the Imbalance Weight.
HINT: The stick-on weight conversion is only required for the outside wheel weight location.

7. Apply the stick-on type wheel weight in the position indicated by the wheel balancer.
HINT: Make sure the wheel is clean and dry prior to applying stick -on type wheel weight.

8. Tap on the appropriate clip-on type wheel weight on the inner wheel flange in the location indicated by the wheel balancer.
9. Re-measure the tire/wheel assembly imbalance to ensure tire/wheel assembly is balanced.
Page 3 of 3
  ZOOM             SIZED FOR PRINT


Conversion Table
