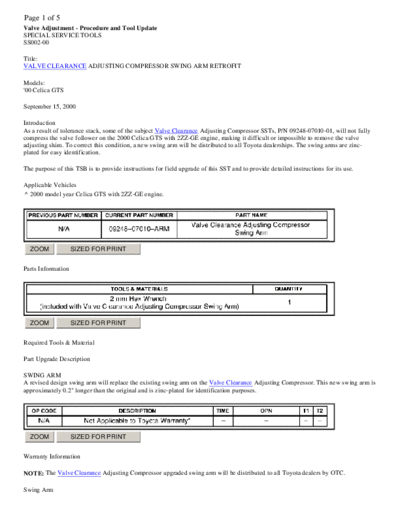

Page 1 of 5 Valve Adjustment - Procedure and Tool Update SPECIAL SERVICE TOOLS SS002-00 Title: VALVE CLEARANCE ADJUSTING COMPRESSOR SWING ARM RETROFIT Models: '00 Celica GTS September 15, 2000 Introduction As a result of tolerance stack, some of the subject Valve Clearance Adjusting Compressor SSTs, P/N 09248-07010-01, will not fully compress the valve follower on the 2000 Celica GTS with 2ZZ-GE engine, making it difficult or impossible to remove the valve adjusting shim. To correct this condition, a new swing arm will be distributed to all Toyota dealerships. The swing arms are zinc- plated for easy identification. The purpose of this TSB is to provide instructions for field upgrade of this SST and to provide detailed instructions for its use. Applicable Vehicles ^ 2000 model year Celica GTS with 2ZZ-GE engine. ZOOM SIZED FOR PRINT Parts Information ZOOM SIZED FOR PRINT Required Tools & Material Part Upgrade Description SWING ARM A revised design swing arm will replace the existing swing arm on the Valve Clearance Adjusting Compressor. This new swing arm is approximately 0.2" longer than the original and is zinc-plated for identification purposes. ZOOM SIZED FOR PRINT Warranty Information NOTE: The Valve Clearance Adjusting Compressor upgraded swing arm will be distributed to all Toyota dealers by OTC. Swing Arm Page 2 of 5 A revised design swing arm will replace the existing swing arm on the Valve Clearance Adjusting Compressor. This new swing arm is approximately 0.2" longer than the original and is zinc-plated for identification purposes. *Applicable Warranty: With the LIFETIME MARATHON(R) WARRANTY, all SPX OTC products and parts are warranted against defects in materials and workmanship for the life of the product or part. For service on this or any other Toyota SST, call 1(800) 933-8335. Retrofit Procedure ZOOM SIZED FOR PRINT 1. Remove the 2 mm set screw from the swing arm using the Hex wrench supplied. 2. Remove the handle and the old swing arm; discard the old swing arm. 3. Install the new swing arm (P/N 09248-07010-ARM) and handle, making sure that the flat portion of the handle is aligned with the set screw prior to tightening. 4. Tighten the set screw using the Hex wrench supplied. Instructions for SST Use (2ZZ -GE) Corrections have been made to the 2000 MY Celica Repair Manual to provide the technician with detailed instructions on how to use this SST. CHANGES INDICATED BY ARROWS. NOTE: For complete valve clearance adjustment instructions, please refer to TSB EG008-00, REPAIR MANUAL CORRECTION: VALVE CLEARANCE ADJUSTMENT. Page 3 of 5 ZOOM SIZED FOR PRINT Amended pages to follow as shown. ZOOM SIZED FOR PRINT 2000 MY Celica Repair Manual, RM 744U2, Page EM-6 Page 4 of 5 ZOOM SIZED FOR PRINT 2000 MY Celica Repair Manual, RM 744U2, Page EM-7 Page 5 of 5 ZOOM SIZED FOR PRINT 2000 MY Celica Repair Manual, RM 744U2, Page EM-12
