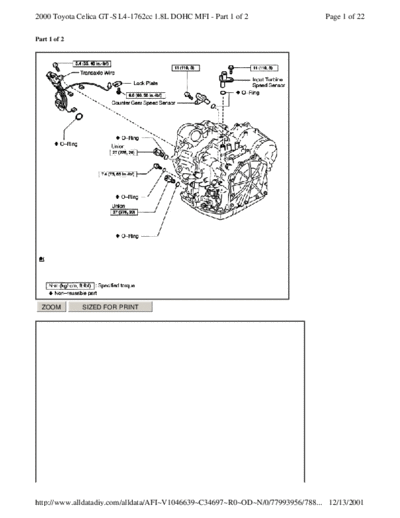

Image preview - the first page of the document
>> Download ARTICLE_TRANNY_AUTO_DISASSEMBLE_PART1 documenatation <<
Text preview - extract from the document
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 1 of 22
Part 1 of 2
ZOOM SIZED FOR PRINT
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 2 of 22
ZOOM SIZED FOR PRINT
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 3 of 22
ZOOM SIZED FOR PRINT
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 4 of 22
ZOOM SIZED FOR PRINT
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 5 of 22
ZOOM SIZED FOR PRINT
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 6 of 22
ZOOM SIZED FOR PRINT
DISASSEMBLY
1. REMOVE PARK/NEUTRAL POSITION SWITCH
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 7 of 22
ZOOM SIZED FOR PRINT
a. Remove the nut, washer and control shaft lever.
ZOOM SIZED FOR PRINT
b. Using a screwdriver, unstake the lock washer.
c. Remove the nut.
ZOOM SIZED FOR PRINT
d. Remove the 2 bolts, and pull out the park/neutral position switch.
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 8 of 22
ZOOM SIZED FOR PRINT
2. REMOVE UNION
a. Remove the 2 unions.
b. Remove the 2 O-rings from the 2 union.
ZOOM SIZED FOR PRINT
3. REMOVE TRANSAXLE CASE PLUG NO. 1
a. Remove the transaxle case plug No. 1 from the transaxle case.
b. Remove the O-ring from the transaxle case plug No. 1.
ZOOM SIZED FOR PRINT
4. REMOVE SPEED SENSOR
a. Remove the 2 bolts and 2 speed sensors from the transaxle.
b. Remove the 2 O-rings from the sensors.
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 9 of 22
ZOOM SIZED FOR PRINT
5. REMOVE SOLENOID WIRE RETAINING BOLT NOTICE: Remove the bolt only and do not remove the solenoid
wire.
ZOOM SIZED FOR PRINT
6. PLACE TRANSAXLE ON WOODEN BLOCKS NOTICE: Be careful not to damage the oil seal.
ZOOM SIZED FOR PRINT
7. REMOVE OIL PAN AND GASKET
a. Remove the 18 bolts.
b. Remove the oil pan and gasket.
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 10 of 22
ZOOM SIZED FOR PRINT
8. EXAMINE PARTICLES IN PAN Remove the magnets and use them to collect any steel chips. Examine the chips
and particles in the pan and on the magnet to determine what type of wear has occurred in the transaxle: Steel
(magnetic) bearing, gear and plate wear Brass (non-magnetic) bushing wear
9. REMOVE TRANSAXLE SOLENOID WIRE
ZOOM SIZED FOR PRINT
a. Remove the 5 connectors from shift solenoid valves.
b. Remove the bolt, lock plate and ATF temperature sensor.
c. Remove the transaxle solenoid wire from the transaxle case.
ZOOM SIZED FOR PRINT
d. Remove the O-ring from the transaxle solenoid wire.
10. REMOVE OIL STRAINER
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 11 of 22
ZOOM SIZED FOR PRINT
a. Remove the 3 bolts and oil strainer.
ZOOM SIZED FOR PRINT
b. Remove the gasket from the oil strainer.
ZOOM SIZED FOR PRINT
11. REMOVE VALVE BODY ASSEMBLY Support the valve body assembly and remove the 17 bolts and the valve
body assembly.
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 12 of 22
ZOOM SIZED FOR PRINT
12. REMOVE 4 APPLY GASKETS
ZOOM SIZED FOR PRINT
13. REMOVE CHECK BALL BODY Remove the check ball body and spring.
14. REMOVE ACCUMULATOR SPRING AND PISTON
ZOOM SIZED FOR PRINT
a. Remove the spring from the C3 accumulator piston.
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 1 of 2 Page 13 of 22
ZOOM SIZED FOR PRINT
b. Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the oil hole and remove the C3 accumulator piston.
NOTICE:
