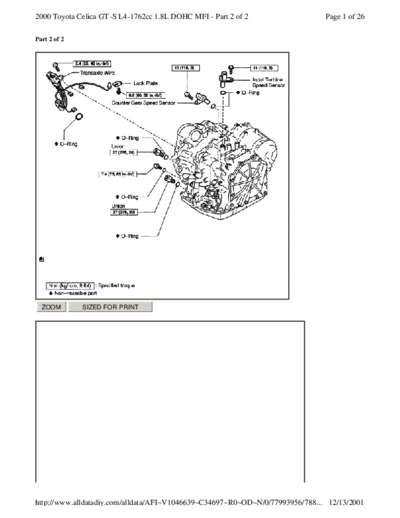

ARTICLE_TRANNY_AUTO_DISASSEMBLE_PART2


>> Download ARTICLE_TRANNY_AUTO_DISASSEMBLE_PART2 documenatation <<

Text preview - extract from the document
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                 Page 1 of 26

Part 2 of 2




  ZOOM        SIZED FOR PRINT




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                 Page 2 of 26




 ZOOM        SIZED FOR PRINT




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                 Page 3 of 26




 ZOOM        SIZED FOR PRINT




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                 Page 4 of 26




 ZOOM        SIZED FOR PRINT




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                 Page 5 of 26




 ZOOM        SIZED FOR PRINT




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                 Page 6 of 26




 ZOOM         SIZED FOR PRINT


DISASSEMBLY




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                                Page 7 of 26




 ZOOM            SIZED FOR PRINT



 25. REMOVE U/D CLUTCH ASSEMBLY Remove the U/D clutch assembly, the thrust bearing and the bearing race
     from the transaxle case.
 26. REMOVE ONE-WAY CLUTCH NO. 2




 ZOOM            SIZED FOR PRINT



  a.   Using a screwdriver, remove the snap ring.




 ZOOM            SIZED FOR PRINT



  b.   Remove the one -way clutch No. 2 from the transaxle case.




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                 Page 8 of 26




 ZOOM            SIZED FOR PRINT



  c.   Remove the outer race retainer from the one -way clutch No. 2.

         27. REMOVE U/D BRAKE




 ZOOM            SIZED FOR PRINT



  a.   Using a screwdriver, remove the snap ring.




 ZOOM            SIZED FOR PRINT



  b.   Remove the flange, 4 discs and 4 plates from the transaxle case.




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                                               Page 9 of 26




 ZOOM            SIZED FOR PRINT



  c.   Using SST, a snap ring expander and a press, remove the snap ring. SST 09387-00020




 ZOOM            SIZED FOR PRINT



  d.   Remove the piston return spring.

         28. REMOVE TRANSAXLE REAR COVER




 ZOOM            SIZED FOR PRINT



  a.   Remove the 11 bolts.
  b.   Tap on the circumference of the rear cover with a plastic hammer to remove the transaxle rear cover from the
       transaxle case.




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                                       Page 10 of 26




 ZOOM            SIZED FOR PRINT



  c.   Remove the 2 oil seal rings from the transaxle rear cover.




 ZOOM            SIZED FOR PRINT



  d.   Using SST, remove the needle-roller bearing. SST 09387 -00040 (09387-01010, 09387-01030, 09387-01040)




 ZOOM            SIZED FOR PRINT



 29. REMOVE BRAKE APPLY PIPE

          a.   Remove a bolt, clamp and 2 brake apply pipes.




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                             Page 11 of 26




 ZOOM            SIZED FOR PRINT



 30. REMOVE TRANSAXLE CASE APPLY GASKET Using a screwdriver, remove the 2 apply gaskets.
 31. REMOVE DIRECT CLUTCH ASSEMBLY




 ZOOM            SIZED FOR PRINT



  a.   Remove the thrust bearing and the direct clutch from the transaxle case.




 ZOOM            SIZED FOR PRINT



  b.   Remove the bearing race from the direct clutch.

         32. REMOVE REAR PLANETARY SUN GEAR ASSEMBLY




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                               Page 12 of 26




 ZOOM            SIZED FOR PRINT



  a.   Remove the rear planetary sun gear assembly from the transaxle case.




 ZOOM            SIZED FOR PRINT



  b.   Remove the thrust bearing from the rear planetary sun gear.




 ZOOM            SIZED FOR PRINT



  c.   Remove the thrust washer No. 1 and thrust bearing from the rear planetary sun gear.

         33. REMOVE ONE-WAY CLUTCH NO.1




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                Page 13 of 26




 ZOOM            SIZED FOR PRINT



  a.   Remove the one -way clutch No.1 from the transaxle case.




 ZOOM            SIZED FOR PRINT



  b.   Remove the inner race from the one -way clutch No. 1.




 ZOOM            SIZED FOR PRINT



 34. REMOVE ONE-WAY CLUTCH OUTER SLEEVE
 35. REMOVE 2ND BRAKE




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                Page 14 of 26




 ZOOM            SIZED FOR PRINT



  a.   Using a screwdriver, remove the snap ring.




 ZOOM            SIZED FOR PRINT



  b.   Remove the flange, 4 discs and 4 plates from the transaxle case.

         36. REMOVE 2ND BRAKE CYLINDER




 ZOOM            SIZED FOR PRINT



  a.   Using a screwdriver, remove the snap ring.




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                       Page 15 of 26




 ZOOM            SIZED FOR PRINT



  b.   Remove the 2nd brake cylinder from the transaxle.

        37. REMOVE 2ND BRAKE PISTON




 ZOOM            SIZED FOR PRINT



  a.   Using SST, a press and a screwdriver, remove the snap ring. SST 09387-00060




 ZOOM            SIZED FOR PRINT



  b.   Remove the return spring.




http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Part 2 of 2                                             Page 16 of 26




 ZOOM            SIZED FOR PRINT



  c.   Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the 2nd brake cylinder to remove 2nd brake piston.
       NOTICE:
