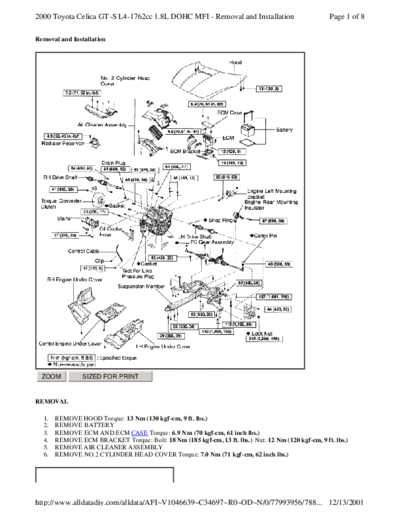

2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Removal and Installation Page 1 of 8
Removal and Installation
ZOOM SIZED FOR PRINT
REMOVAL
1. REMOVE HOOD Torque: 13 Nm (130 kgf-cm, 9 ft. lbs.)
2. REMOVE BATTERY
3. REMOVE ECM AND ECM CASE Torque: 6.9 Nm (70 kgf-cm, 61 inch lbs.)
4. REMOVE ECM BRACKET Torque: Bolt: 18 Nm (185 kgf-cm, 13 ft. lbs.) Nut: 12 Nm (120 kgf-cm, 9 ft. lbs.)
5. REMOVE AIR CLEANER ASSEMBLY
6. REMOVE NO.2 CYLINDER HEAD COVER Torque: 7.0 Nm (71 kgf-cm, 62 inch lbs.)
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Removal and Installation Page 2 of 8
ZOOM SIZED FOR PRINT
7. REMOVE 2 GROUND CABLES Torque: 18 Nm (185 kgf-cm, 13 ft. lbs.)
8. DISCONNECT CONTROL CABLE FROM CLAMP
9. DISCONNECT INPUT TURBINE SPEED SENSOR CONNECTOR
10. DISCONNECT COUNTER GEAR SPEED SENSOR CONNECTOR
11. REMOVE VEHICLE SPEED SENSOR CONNECTOR
ZOOM SIZED FOR PRINT
12. REMOVE 2 UPPER SIDE TRANSAXLE MOUNTING BOLTS FROM TRANSAXLE Torque: 64 Nm (650 kgf-
cm, 47 ft. lbs.)
ZOOM SIZED FOR PRINT
13. DISCONNECT SOLENOID CONNECTOR AND PARK/NEUTRAL POSITION SWITCH CONNECTOR
Disconnect the solenoid connector and park/neutral position switch connector.
14. DISCONNECT CONTROL CABLE
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Removal and Installation Page 3 of 8
a) Remove the nut from the control shift lever.
Torque: 12 Nm (120 kgf-cm, 9 ft. lbs.)
b) Remove the clip and disconnect the control cable.
15. REMOVE BOLT AND DISCONNECT RADIATOR RESERVOIR Torque: 4.9 Nm (50 kgf-cm, 43 inch lbs.)
ZOOM SIZED FOR PRINT
16. REMOVE STARTER
a) Remove the nut and wire, and disconnect the connector.
b) Remove the 2 bolts and starter.
Torque: 37 Nm (378 kgf-cm, 28 ft. lbs.)
17. REMOVE LH, RH, CENTER ENGINE UNDER COVERS
ZOOM SIZED FOR PRINT
18. DRAIN ATF FROM FRONT DIFFERENTIAL CASE Torque: 54 Nm (550 kgf-cm, 40 ft. lbs.)
19. REMOVE LH AND RH DRIVE SHAFTS.
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Removal and Installation Page 4 of 8
ZOOM SIZED FOR PRINT
20. DISCONNECT LH AND RH STABILIZER BAR LINKS FROM SHOCK ABSORBER Torque: 44 Nm (450 kgf-
cm, 32 ft. lbs.)
ZOOM SIZED FOR PRINT
21. REMOVE 4 BOLTS AND DISCONNECT PS GEAR ASSEMBLY HINT: Support the PS gear assembly securely.
Torque: 45 Nm (459 kgf-cm, 33 ft. lbs.)
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Removal and Installation Page 5 of 8
ZOOM SIZED FOR PRINT
22. REMOVE SUSPENSION MEMBER
a) Remove the 9 bolts and 3 nuts.
Torque:
Bolt A: 157 Nm (1,601 kgf-cm, 116 ft. lbs.)
Bolt B: 113 Nm (1,152 kgf-cm, 83 ft. lbs.)
Bolt C: 52 Nm (530 kgf-cm, 38 ft. lbs.)
Bolt D: 39 Nm (398 kgf-cm, 29 ft. lbs.)
Nut: 52 Nm (530 kgf-cm, 38 ft. lbs.)
b) Remove the suspension member.
ZOOM SIZED FOR PRINT
23. REMOVE ENGINE REAR MOUNTING INSULATOR Remove the bolt and engine rear mounting insulator.
Torque: 87 Nm (890 kgf-cm, 64 ft. lbs.)
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Removal and Installation Page 6 of 8
ZOOM SIZED FOR PRINT
24. ATTACH ENGINE SLING DEVICE TO ENGINE HANGERS
a) Disconnect the 2 PCV hoses.
b) Install the No.1 and No.2 engine hangers in the correct direction.
Parts No.
No.1 engine hanger: 12281-88600
No.2 engine hanger: 12282-88600
Bolt: 91512-61020
Torque: 38 Nm (387 kgf-cm, 28 ft. lbs.)
c) Attach the engine chain hoist to the engine hangers.
CAUTION: Do not attempt to hang the engine by hooking the chain to any other part.
ZOOM SIZED FOR PRINT
25. REMOVE UPPER SIDE ENGINE LEFT MOUNTING, NUT AND BOLT Torque: 80 Nm (816 kgf-cm, 59 ft. lbs.)
http://www.alldatadiy.com/alldata/AFI~V1046639~C34697~R0~OD~N/0/77993956/788... 12/13/2001
2000 Toyota Celica GT -S L4-1762cc 1.8L DOHC MFI - Removal and Installation Page 7 of 8
ZOOM SIZED FOR PRINT
26. REMOVE OIL COOLER HOSE Loosen the 2 clips and disconnect the 2 oil cooler hoses.
27. SUPPORT TRANSAXLE WITH A JACK
ZOOM SIZED FOR PRINT
28. REMOVE TORQUE CONVERTER CLUTCH MOUNTING BOLT Turn the crankshaft to gain access and remove
the 6 bolts holding the crankshaft pulley set bolt with a wrench. Torque: 41 Nm (418 kgf-cm, 30 ft. lbs.) HINT:
