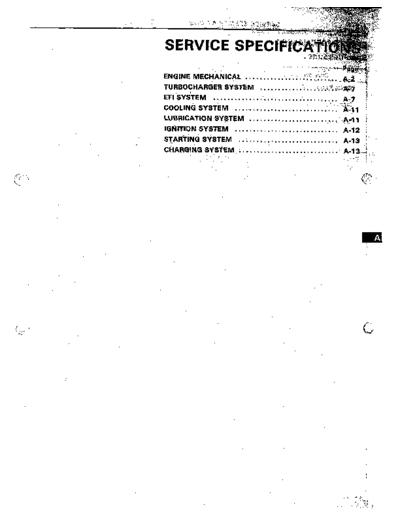

Image preview - the first page of the document
>> Download Toyota-7M-Manual-Service-Sp documenatation <<Text preview - extract from the document ..............................
LUSRlCATlOIjl.SY$T~M ......................... ~.J4~~1 1
IGAITION SYSTEM ............................. A-12 ;
STIJRiiNG S$&EM ............................. A-13 1
CilARGING SY$?EM . . ..*.....................,, A,434
I !. .. Y",, 1
(
I:
A12 : SERVICE SPECIFICATIONS - Enaine.Mechanical
EN$W4~~~WlECHAN~CAL (
`t&.gy,.::*,.: ., : r'
..
:
Speclfrcations
r `-' b-
"
~.
.. .,: Drive belt deflection
;Water Pump - Alternator
or tension
New belt
/ ,.w/. IO, kg (22.1 lb, 98 N)
IO 7 1.2:mm .0.39 - 0.47 in.
w/ SST (Reference)
70 - 80 kg
Used belt I5 -, 17 mm 0.59 - 0.87 in. 30 - 45 kg
,,`Crankshaft - PS pump New belt I- 8mm 0.28 - 0.31 in. 55 - 65 kg
..!
Used belt 3-llmm 0.35 - 0.43 in. " 25 -`40 kg
-Crankshaft - A/C compressor Newhit MA 7 1 9.5`mm 0.28 - 0.374 in. 53 - 77 kg
,. MS 7;.5 - 9.5 mm 0.295 - 0.374 in. 53 - 77 kg
`;
Used belt MA 10.5 .- 12 mm 0.413 - 0.47 in. 30 - 40 kg
<": MS IO - 13.,mm 0.39 - 0.51 in. 30 - 40 kg
Engine coolant capacity
MA
WI Heater or air con. M/T 8.1 liters 8.5 US qts \ 7.1 Imp. qts
A/T 8.0 liters. 8.5 US qts 7.0 Imp. qts:
,.
w/o Heater or air con. M/T 7.5 liters 7.9 us qts 6.8 Imp. qts
A/T 7.4 liters 7.8 US qts 6.5 Imp. qts
MS (GCC Countires')
WI Heater or air con. 8.5 liters 9.0 us qts 7.5 Imp. qts
w/o Heater or air con. 7.8 liters 8.2 US qts 6.9 Imp. qts
MS (Others)
w/ Heater or air con. 7.8 liters 8.2 US qts 6.9 Imp. qts
w/o Heater or air con. 7.1 liters 7.5 us qts 6.2 Imp. qts
Engine oil capacity
Dry fill
7M-GE MA (GCC Countires') 5.0 liters 5.3 us qts 4.4 Imp. qts
7M-GE MA (Others) 4.9 liters 5.2 US qts 4.3 Imp. qts
7M-GE MS 5.3 liters 5.6 US qts 4.7 Imp. qts
7M-GTE (M/T) 5.1 liters 5.4 us qts 4.5 Imp. qts
7M-GTE (A/T) 5.0 liters 5.3 us qts 4.4 Imp. qts
Drain and refill
w/o Oil filter change
MA 3.9 liters 4.1 US qts 3.4 Imp. qts
MS 4.1 liters 4.3 us qts 3.6 Imp. qts
w/ Oil filter change
MA 4.2 liters 4.4 us qts 3.7 Imp. qts
MS 4.4 liters 4.7 us qts 3.9 Imp. qts
Battery specific gravity 1.25 - 1.27 when fully charged at 20
