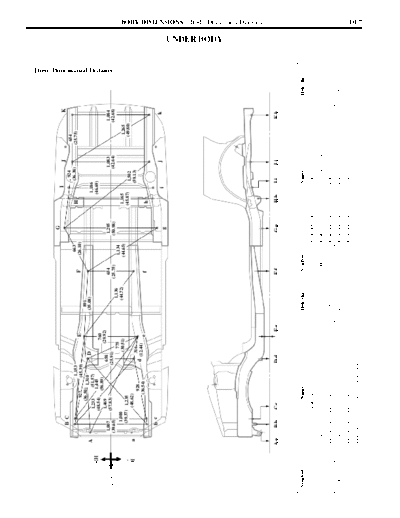

UNDER BODY
BODY DIMENSIONS - Body Dimension Drawings
A,a B,b C,c D,d E,e F,f G,g H,h I,i J,j K,k
mm (in.)
Symbol Name Hole dia. Symbol Name Hole dia.
A, a Front crossmember standard hole 10 (0.39) G, g Rear floor side member standard hole 18 (0.71)
B, b Front frame installation nut 14 (0.55) nut H, h Rear suspension arm installation hole-inner 13 (0.51)
C, c Front side member standard hole 18 (0.71) I, i Rear floor side member standard hole 18 (0.71)
D, d Front frame installation nut 14 (0.55) nut J, j Rear floor side member standard hole 18 (0.71)
E, e Front side member standard hole 18 (0.71) K, k Rear floor side member standard hole 15 (0.59)
F, f Front floor under reinforcement standard hole 18 (0.71) -- -- --
DI-7
2,102 1,548 885 990 1,490 2,144
DI-8
(82.76) (60.94) (34.84) 0 (38.98) (58.66) (84.41)
H J L
B M
C D
F K
G I
E
606 583 541 542
A 504 (23.86) (22.95) (21.30) (21.34)
RH 380 327
(19.84) (14.96) (12.87)
(Two-Dimensional Distance)
Front
290 329 327
(11.42) (12.95) (12.87) 593 633
L 500 648
(25.51) (23.35) (24.92)
H a (19.69)
e f
g
i
b c
d k l m
j
h
2,192 2,020 1,195 0 580 1,140 1,697
(86.30) (79.53) (47.05) (22.83) (44.88) (66.81)
Wheel base 2,900 (114.17)
UNDER BODY (Cont'd)
BODY DIMENSIONS - Body Dimension Drawings
Imaginary
Standard
A,a B b C,c D,d E,e F,f G,g H,h I,i J,j K,k L,l M,m
102 179 199 230 754 105 68 158 148 160 245 269 446 252
Line
(4.02) (7.05) (7.83) (9.06) (29.69) (4.13) (2.68) (6.22) (5.83) (6.30) (9.65) (10.59) (17.56) (9.92) mm (in.)
Symbol Name Hole dia. Symbol Name Hole dia.
A, a Front crossmember standard hole 10 (0.39) H, h Rear floor side member standard hole 18 (0.71)
B, b Front frame installation nut 14 (0.55) nut I, i Rear suspension arm installation hole-inner 13 (0.51)
C, c Front side member standard hole 18 (0.71) J, j Rear floor side member standard hole 18 (0.71)
D, d Front spring support hole outer-front 11 (0.43) K, k Rear floor side member standard hole 18 (0.71)
E, e Front frame installation nut 14 (0.55) nut L, l Shock absorber installation hole 16 (0.63)
F, f Front side member standard hole 18 (0.71) M, m Rear floor side member standard hole 15 (0.59)
G, g Front floor under reinforcement standard hole 18 (0.71) -- -- --
