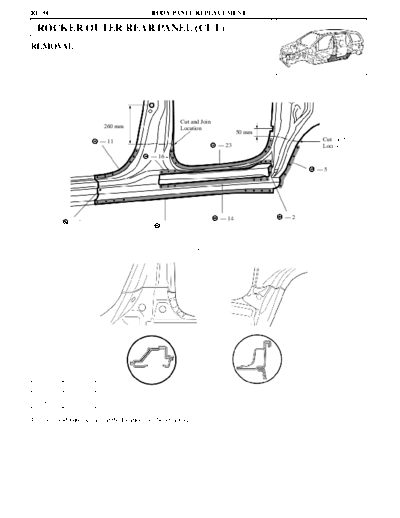

RE-38                                         BODY PANEL REPLACEMENT

     ROCKER OUTER REAR PANEL (CUT)
REMOVAL




                                                          Cut and Join
                           260 mm                         Location
                                                                                  50 mm
                          -- 11                                                                  Cut and Join
                                                                         -- 23                   Location
                                             -- 16

                                                                                                --5




                                                                          -- 14           --2
               --1
                                                  -- 34


                                                          [Cut and Join Locations]




     mm          in.
      50        1.97
     260       10.24

1.    Cut and join the parts at the locations as shown above.
                                            BODY PANEL REPLACEMENT                                                     RE-39
INSTALLATION


                                                                            [Foamed Material Application Area]




                       Body Sealer




          about 5 mm


                                                                                           A-A




                                                                    Butt Weld
                                                                                   A
                           -- 11                             --4       -- 25
                                                                                                          A
                                              -- 16



                                                                                                                 --7


                                                                                               --2
                                                                                                     Body Sealer
                                                                        -- 14
                                                -- 34
                --1


     mm         in.
     5         0.20

1.   Before temporarily installing the new parts, apply        2.      Temporarily install the new parts and check the fit of
     body sealer to the wheel arch.                                    the front door and slide door.
HINT:                                                          3.      Apply foamed material to the quater section.
1) Apply body sealer about 5 mm (0.20 in.) from the
    flange, avoiding any oozing.
2)   Apply sealer evenly, about 3 - 4 mm (0.12 - 0.16 in.)
     in diameter.
3)   For other sealing points, refer to section AR.
