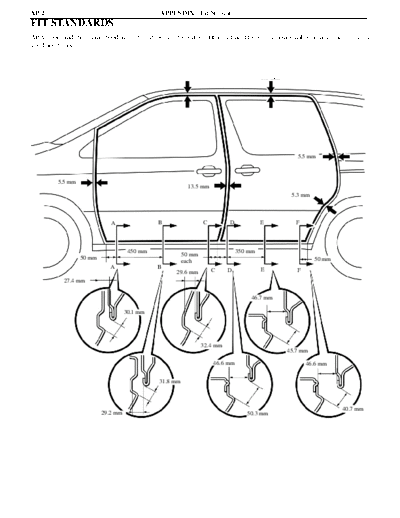

Image preview - the first page of the document



>> Download fitstand documenatation <<

Text preview - extract from the document

AP-2                                           APPENDIX - Fit Standards
FIT STANDARDS
After doors and the engine hood are installed, be sure to perform fit adjustment to prevent abnormal wind noise and ensure a
good appearance.



                                                      5.9 mm                            5.9 mm




                                                                                                    5.5 mm



         5.5 mm
                                                          13.5 mm
                                                                                                  5.3 mm



                             A                B                  C         D            E           F



                                     450 mm                                    350 mm
                                                         50 mm
                  50 mm                                                                                    50 mm
                                                         each
                             A                B                                         E
                                                     29.6 mm         C     D                        F
            27.4 mm

                                                                                    46.7 mm

                                    30.1 mm




                                                                 32.4 mm
                                                                                                 45.7 mm

                                                                     46.6 mm                            46.6 mm


                                               31.8 mm



                                                                                                                   40.7 mm
                          29.2 mm                                                 50.3 mm
                             APPENDIX - Fit Standards                          AP-3




                    4.2 mm


               7.9 mm




mm      in.                                             10.4 mm
 4.2   0.165
 5.3   0.209
 5.5   0.217
 5.7   0.224                                                               5.7 mm
 5.9   0.232
 7.3   0.287
 7.9   0.311
10.4   0.409
13.5   0.531
27.4   1.079
29.2   1.150
29.6   1.165
30.1   1.185
31.8   1.252
32.4   1.276
40.7   1.602
45.7   1.799
46.6   1.835
46.7   1.839                                                      7.3 mm
 50     1.97
50.3   1.980
350    13.78
450    17.72
