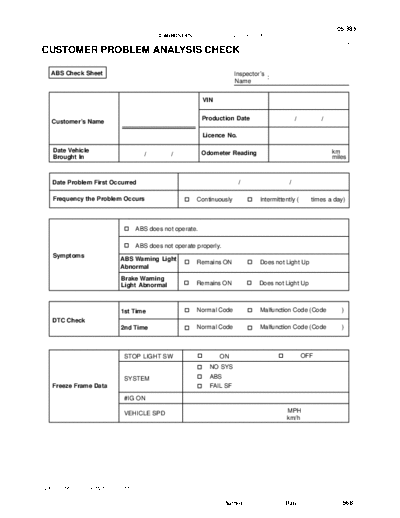

Image preview - the first page of the document
>> Download cpac4000 documenatation <<
Text preview - extract from the document
05-385
DIAGNOSTICS - ABS WITH EBD SYSTEM
057U8-03
CUSTOMER PROBLEM ANALYSIS CHECK
ABS Check Sheet Inspector's
:
Name
VIN
Production Date / /
Customer's Name
Licence No.
Date Vehicle Odometer Reading km
/ / miles
Brought In
Date Problem First Occurred / /
Frequency the Problem Occurs Continuously Intermittently ( times a day)
ABS does not operate.
ABS does not operate properly.
Symptoms
ABS Warning Light Remains ON Does not Light Up
Abnormal
Brake Warning
Light Abnormal Remains ON Does not Light Up
1st Time Normal Code Malfunction Code (Code )
DTC Check
2nd Time Normal Code Malfunction Code (Code )
STOP LIGHT SW ON OFF
NO SYS
SYSTEM ABS
Freeze Frame Data FAIL SF
#IG ON
VEHICLE SPD MPH
km/h
2005 SIENNA REPAIR MANUAL (RM1163U)
