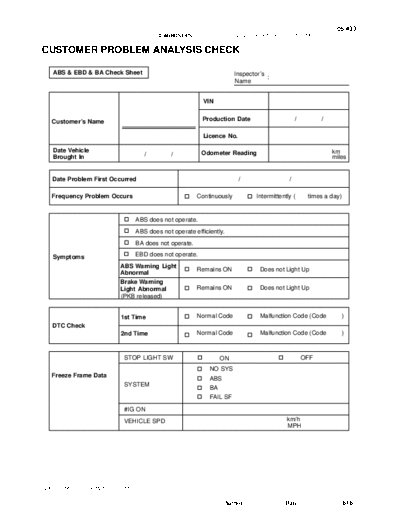

Image preview - the first page of the document
>> Download cpac4000 documenatation <<
Text preview - extract from the document
05-433
DIAGNOSTICS - ABS WITH EBD & BA & TRAC & VSC SYSTEM
05BX3-01
CUSTOMER PROBLEM ANALYSIS CHECK
ABS & EBD & BA Check Sheet Inspector's
:
Name
VIN
Customer's Name Production Date / /
Licence No.
Date Vehicle Odometer Reading km
/ / miles
Brought In
Date Problem First Occurred / /
Frequency Problem Occurs Continuously Intermittently ( times a day)
ABS does not operate.
ABS does not operate efficiently.
BA does not operate.
Symptoms EBD does not operate.
ABS Warning Light Remains ON Does not Light Up
Abnormal
Brake Warning
Light Abnormal Remains ON Does not Light Up
(PKB released)
1st Time Normal Code Malfunction Code (Code )
DTC Check
2nd Time Normal Code Malfunction Code (Code )
STOP LIGHT SW ON OFF
NO SYS
Freeze Frame Data ABS
SYSTEM
BA
FAIL SF
#IG ON
VEHICLE SPD km/h
MPH
2005 SIENNA REPAIR MANUAL (RM1163U)
Author : Date : 616
05-434
DIAGNOSTICS - ABS WITH EBD & BA & TRAC & VSC SYSTEM
TRAC & VSC Check Sheet Inspector's
:
Name
VIN
Customer's Name Production Date / /
Licence No.
Date Vehicle km
/ / Odometer Reading miles
Brought In
Date Problem First Occurred / /
Frequency Problem Occurs Continuous Intermittent ( times a day)
TRAC does not operate. (Wheels spin when starting rapidly.)
VSC does not operate. (Wheels sideslip at the time of sharp turning.)
TRAC OFF Indicator
Remains ON Does not Light Up
Light Abnormal
VSC Warning
Symptoms Indicator Abnormal Displays Does not Display
SLIP Indicator
Remains ON Does not Light Up
Light Abnormal
Skid Control Sounds Does not Sound
Buzzer Abnormal
ABS Warning Light Normal Malfunction Code (Code )
Check Item Malfunction Normal Malfunction Code (Code )
Indicator Light
1st Time Normal Code Malfunction Code (Code )
DTC Check 2nd Time Malfunction Code (Code )
Normal Code
VSC/TRC OFF SW ON OFF
SYSTEM VSC/TRC
Freeze Frame Data
P,N 2 R 3
SHIFT POSITION
D 4 L FAIL
STEERING ANG deg
YAW RAT deg/s
MAS CYL PRESS V
THROTTLE deg
MAS PRESS GRADE MPa/s
G (RIGHT&LEFT) G
G (BACK&FORTH) G
2005 SIENNA REPAIR MANUAL (RM1163U)
Author : Date : 617
