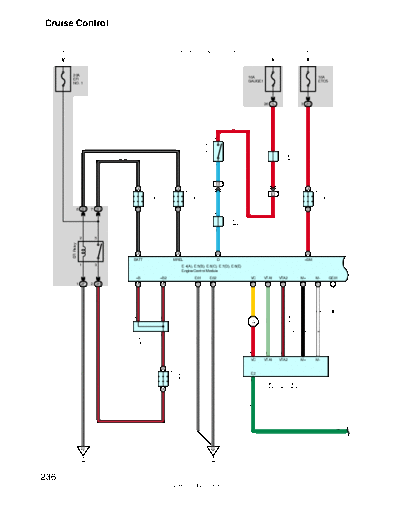

Cruise Control
From Power Source System (See Page 58)
20A 10A 10A
EFI GAUGE1 ETCS
NO. 1
26 1L 3 2H
R
R
2
Park/Neutral
Position SW
R
85
J18
Junction
B- W
P1
Connector
7 76
L- W
B- W
R
B- W
B- W
4 II3
J 5(A), J 6(B)
J 3(A), J 4(B)
J 3(A), J 4(B)
11 A 25 A 21 A
Connector
Connector
Connector
10 II3
Junction
Junction
Junction
L- W
R
6 2H 7 2H 25 B 8 B 4 B
74
J20
Junction
Connector
B- W
B- W
73
R
2 5
L- W
EFI Relay
3 A 8 A 10 B 6 B
BATT MREL D +BM
1 3 E 4(A), E 5(B), E 6(C), E 7(D), E 8(E)
Engine Control Module
+B +B2 E01 E02 VC VTA1 VTA2 M+ M- GE01
1 2F 2 2H 1 A 2 A 7 E 6 E 18 E 21 E 31 E 3 C 2 C 17 C
B- R
B- R
B- R
Y
(Shielded)
A A
B- R
LG
W
B
I2
J21 A
W- B
W- B
Junction
R
Connector
B- R
5 6 4 2 1
VC VTA1 VTA2 M+ M-
J 3(A), J 4(B)
9 B
Connector
E2
W- B
Junction
3 T2
Throttle Control Motor
26 A Throttle Position Sensor
B- R
G
G
ED EB
236
2005 SIENNA (EWD613U)
From Power Source System (See Page 58)
10A 7. 5A
STOP IGN
16 1C 30 1K 13 1H D1
Data Link Connector 3
B- O
G- W
J 5(A), J 6(B)
18 B
Connector
Connector
A
Junction
Junction
WFSE SIL TC
W
J2
15 7 13
A 4 A
P- B
W
B- O
2 3 28 1K 14 1K
W- L
B- O
LG- R
G- W
12 1H 34 1H
Stop Light SW
J 3(A), J 4(B)
20 A 2 A
P- B
W
Connector
Junction
S12
Connector
22 3 26 29
1 4
Junction
3 B 19 B
LG- R
J18
G- W
12 13 16 19
LG- R
G- W
W- L
B- O
P- B
W
19 B 12 B 9 A 19 A 18 A 20 A
STP ST1- IGSW WFSE SIL TC
E 4(A), E 5(B), E 6(C), E 7(D), E 8(E)
Engine Control Module
DSL S4 SR SLT+ SLT- SL3+ SL3- SL1+ SL1- SL2+ SL2- THO1 E2
11 D 10 D 9 D 13 D 12 D 17 D 16 D 19 D 18 D 15 D 14 D 32 D 28 E
BR
LG- B
G
G- W
B- W
G- R
Y- G
Y- R
G- B
R- B
Y- B
L- R
L- Y
GR
I2
BR
10 3 9 2 8 4 11 6 13 5 12 1 7
GR
BR
LG
SB
W
G
O
O
R
Y
V
B
L
E1
Electronically Controlled Transmission Solenoid
G
237
2005 SIENNA (EWD613U)
Cruise Control
R- L
V
A15
Accel Position Sensor
R- L
R- L
7 1E
R- L
V
VPA1 VPA2 VCP1 VCP2 EP1 EP2
A/C Control Assembly
6 3 4 1 5 2
22 14 21 B 2
Airbag Sensor
MPX2 MPX1 MPX2 MPX+
GR- R
W- R
Assembly
B- R
R- B
L- Y
LG
A21
MPX1 MPX-
A9
Junction Connector
24 B 7(B) 3
J 5(A), J 6(B)
13 A 27 A 14 A 28 A 12 A 26 A Body ECU
R- L
R- L
6 1E
Connector
27 B 13 B 28 B 14 B 26 B 12 B 70
Junction
J19
GR- R
W- R
B- R
R- B
32 1H
L- Y
LG
90
R- L
V
22 A 23 A 26 A 27 A 28 A 29 A 29 B 18 B
VPA VPA2 VCPA VCP2 EPA EPA2 MPX2 MPX1
E 4(A), E 5(B), E 6(C), E 7(D), E 8(E)
Engine Control Module
E04 E05 E03 ME01 CCS EOM E1 SPD
7 D 6 D 7 C 4 C 24 B 15 A 1 C 17 B
BR
B
Connector
Connector
89 66
Junction
Junction
96
V- W
J19
J20
49 76
BR
BR
BR
B
5 4
W- B
W- B
W- B
W- B
CCS ECC
Connector
75
W- B
Junction
B
J20
3 1 8 II3
CCS ECC 45
ON- OFF
BR
V- W
A A
+ RES
A J29
Junction
- SET
Combination SW
Connector
V- W
CANCEL
C13
BR
EC EB
238
2005 SIENNA (EWD613U)
From Power Source System (See Page 58)
10A 7. 5A * 1 : w/ VSC
ECU- B GAUGE2 * 2 : w/o VSC
8 2C 25 1H
W- L
R- L
V 24 1C
7 1L
W- L
B- R
R- L
V
Connector
62 13 54
Junction
J19
32 33 34
W- L
R- L
V
C10
28 29 12 32 Combination Meter
Speedometer
CRUISE
35 30 36
GR- R
V- W
BR
Junction Connector
J 7(A), J 8(B)
4 B
16 A
GR
12 A (* 1)
17 B (* 2)
SP1
S 3(A), (B)
Skid Control ECU
with Actuator
V- W
IF
239
2005 SIENNA (EWD613U)
Cruise Control
System Outline
The cruise control system is a constant vehicle speed controller which controls the opening angle of the engine throttle valve
by the SW, and allows driving at a constant speed without depressing the accelerator pedal.
Set Operation
When the ON-OFF SW is turned on, the systems starts preparations for cruise control and turns on the indicator light in the
combination meter.
Set Speed Control
When the - SET SW is operated with the ON-OFF SW turned on during driving, the speed is controlled at a constant speed.
Coast Control
When the - SET SW is kept turned on during cruise control driving, the engine control module controls the throttle valve to
decelerate the vehicle speed.
Every time the - SET SW is turned on instantaneously, the vehicle speed is decelerated approx. 1.6 km/h.
Accel Control
When the + RES SW is kept turned on during cruise control driving, the engine control module controls the throttle valve to
accelerate the vehicle speed.
Every time the + RES SW is turned on instantaneously, the vehicle speed is accelerated approx. 1.6 km/h.
Resume Control
If the vehicle speed is within the low speed limit (Approx. 40 km/h, 25 mph) when canceling the cruise control, operation of
the + RES SW accelerates the vehicle speed and resumes the level before canceling the cruise control.
Manual Cancel Mechanism
If any of the following signals are input during cruise control driving, the cruise control is canceled.
The stop light SW is on
The CANCEL SW is turned on
The ON-OFF SW is turned off
Gear is shifted from D position to other positions than D.
Auto Cancel Function
If any of the following conditions are detected, the cruise control is canceled:
Failure in the stop light SW wiring
Abnormality in the vehicle speed signal
Malfunction in the electronically controlled throttle parts
Overdrive Function
The overdrive may be canceled if the vehicle travels on a upward slope during cruise control driving. After the overdrive is
canceled, if the vehicle speed exceeds the overdrive return speed and it is determined that the slope has finished, and the
vehicle returns to overdrive mode again.
Service Hints
E4 (A), E5 (B), E6 (C), E7 (D), E8 (E) Engine Control Module
(A) 3, (B) 6-Ground : Always approx. 12 volts
(A) 9-Ground : Approx. 12 volts with the ignition SW at ON position
(B)19-Ground : Approx. 12 volts with the brake pedal depressed
(A) 15, (C) 1, (C) 4, (C) 7, (D) 6, (D) 7, (E) 6, (E) 7-Ground : Always continuity
C13 Combination SW
5-4 : Approx. 1540 with CANCEL SW on
: Approx. 240 with + RES SW on
: Approx. 630 with - SET SW on
240
2005 SIENNA (EWD613U)
: Parts Location
Code See Page Code See Page Code See Page
A9 34 E6 C 35 J18 36
A15 34 E7 D 35 J19 36
A21 34 E8 E 35 J20 36
B7 B 34 J2 33 J21 36
C10 35 J3 A 36 J29 36
C13 35 J4 B 36 P1 33
D1 35 J5 A 36 A 33
S3
E1 32 J6 B 36 B 33
E4 A 35 J7 A 36 S12 37
E5 B 35 J8 B 36 T2 33
: Junction Block and Wire Harness Connector
Code See Page Junction Block and Wire Harness (Connector Location)
1C 27 Engine Room Main Wire and Driver Side J/B (Lower Finish Panel)
1E 27
1H 26
Instrument Panel Wire and Driver Side J/B (Lower Finish Panel)
1K
27
1L
2C
2F 22 g
Engine Room Main Wire and Engine Room J/B (Engine Compartment Left)
g ( g )
2H
: Connector Joining Wire Harness and Wire Harness
Code See Page Joining Wire Harness and Wire Harness (Connector Location)
II3 48 Engine Wire and Instrument Panel Wire (Right Kick Panel)
: Ground Points
Code See Page Ground Points Location
EB 44 Rear Bank of Right Cylinder Head
EC 44 Rear Bank of Left Cylinder Head
ED 44 Front Side of the Left Fender Apron
IF 46 Instrument Panel Brace LH
: Splice Points
Code See Page Wire Harness with Splice Points Code See Page Wire Harness with Splice Points
I2 48 Engine Wire
