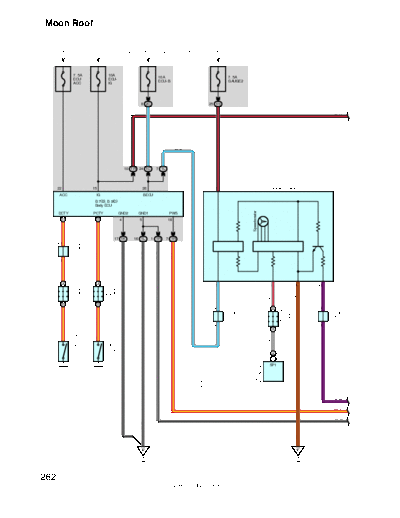

Image preview - the first page of the document
>> Download 050mr documenatation <<
Text preview - extract from the document
Moon Roof
From Power Source System (See Page 58)
7. 5A 10A 10A 7. 5A
ECU ECU- ECU- B GAUGE2
ACC IG
8 2C 25 1H
B- R
W- L
B- R
B- R
W- L
10 1R 24 1C 7 1L
C10
22 15 26 32 Combination Meter
ACC IG BECU
B 7(B), B 9(D)
Body ECU
Speedometer
DCTY PCTY GND2 GND1 PWS
14 D 23 B 4 5 18
R- Y
17 1K 16 1L 1 1R 7 1R
Connector
48
Junction
J18
W- B
W- B
W- B
R- Y
R- Y
58
R- Y
J11(A), J12(B)
J33(A), J34(B)
6 A 5 A 12 35 30 36
Connector
Connector
Junction
Junction
GR- R
V- W
W- L
BR
22 B 17 B
Connector
J 7(A), J 8(B)
Connector
34 4 B 45
Junction
Junction
Connector
Junction
J19
J20
R- Y
R- Y
54 43
16 A
W- L
Door Courtesy SW
Door Courtesy SW
1 1
V- W
GR
Front RH
Front LH
12 A (* 1)
Skid Control ECU
D7
D8
17 B (* 2)
with Actuator
SP1
S 3(A), (B)
* 1 : w/ VSC
* 2 : w/o VSC
V- W
R- Y
W- B
W- B
W- B
BR
IE IF
262
2005 SIENNA (EWD613U)
From Power Source System (See Page 58)
25A
S/ROOF
12 1R
B- R
B- R
L- O
4 BA1 8 BA1
B- R
L- O
A29 9 10
Accessory Meter IG B
M+
M5 M
Moon Roof Control ECU
M-
SPD PWS E CLOSE/UP OPEN/DOWN
3 9 5 4 8 7 6
V- W
R- W
W- B
R- Y
R- L
V
V
4 ID2 9 BA1 3 BA1 12 BA1 11 BA1 10 BA1
R- W
R- L
V
V- W
6 2
CLOSE OPEN
W- B
R- Y
SLIDE
OPEN
TILT
UP
Satellite SW
S13
GND
5
W- B
B1
W- B
V- W
R- Y
W- B
263
2005 SIENNA (EWD613U)
Moon Roof
Service Hints
Body ECU
26-Ground : Always approx. 12 volts
15-Ground : Approx. 12 volts with the ignition SW at ON position
22-Ground : Approx. 12 volts with the ignition SW at ACC or ON position
4, 5-Ground : Always continuity
M5 Moon Roof Control ECU
10-Ground : Always approx. 12 volts
9-Ground : Approx. 12 volts with the ignition SW at ON position
8-Ground : Always continuity
: Parts Location
Code See Page Code See Page Code See Page
A29 38 J8 B 36 J34 B 36
B7 B 34 J11 A 36 M5 39
B9 D 34 J12 B 36 A 33
S3
C10 35 J18 36 B 33
D7 38 J19 36 S13 40
D8 38 J20 36
J7 A 36 J33 A 36
: Junction Block and Wire Harness Connector
Code See Page Junction Block and Wire Harness (Connector Location)
1C 27 Engine Room Main Wire and Driver Side J/B (Lower Finish Panel)
1H 26
1K Instrument Panel Wire and Driver Side J/B (Lower Finish Panel)
( )
27
1L
1R 27 Roof Wire and Driver Side J/B (Lower Finish Panel)
2C 22 Engine Room Main Wire and Engine Room J/B (Engine Compartment Left)
: Connector Joining Wire Harness and Wire Harness
Code See Page Joining Wire Harness and Wire Harness (Connector Location)
ID2 46 Roof Wire and Instrument Panel Wire (Near the Driver Side J/B)
BA1 50 Roof No.3 Wire and Roof Wire (Front Side of the Roof)
: Ground Points
Code See Page Ground Points Location
IE 46 Left Kick Panel
IF 46 Instrument Panel Brace LH
: Splice Points
Code See Page Wire Harness with Splice Points Code See Page Wire Harness with Splice Points
B1 52 Roof Wire
264
2005 SIENNA (EWD613U)
Memo
265
2005 SIENNA (EWD613U)
