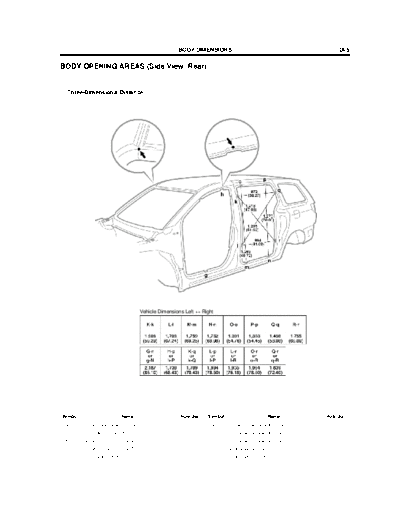

Image preview - the first page of the document



>> Download bodyo documenatation <<

Text preview - extract from the document

                                                    BODY DIMENSIONS                                              DI-5

BODY OPENING AREAS (Side View: Rear)


 (Three-Dimensional Distance)




                                    Vehicle Dimensions Left $ Right




                                                                                                           mm (in.)
Symbol                      Name                     Hole dia.   Symbol                      Name        Hole dia.
 G, g    Rocker panel assembly mark                     --        N, m    Rocker panel assembly mark        --
 H, h    Roof side rail assembly mark                   --        O, o    Roof side rail assembly mark      --
 K, k    Center body pillar assembly mark               --        P, p    Roof side rail assembly mark      --
 L, l    Center body pillar assembly mark               --        Q, q    Quarter panel assembly mark       --
 M, m    Rocker panel assembly mark                     --        R, r    Quarter panel assembly mark       --
