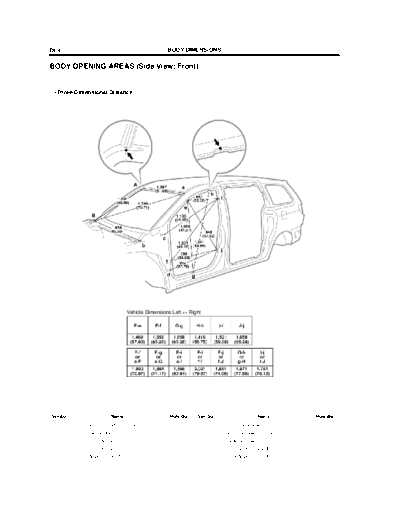

Image preview - the first page of the document



>> Download bodyopen documenatation <<

Text preview - extract from the document

DI-4                                                        BODY DIMENSIONS

BODY OPENING AREAS (Side View: Front)


 (Three-Dimensional Distance)




                                       Vehicle Dimensions Left $ Right




                                                                                                                         mm (in.)
Symbol                       Name                            Hole dia.     Symbol                      Name            Hole dia.
 A, a    Roof panel / Front body pillar adjoining portion       --          F, f    Front body pillar assembly mark       --
 B, b    Hood hinge installation nut                        8 (0.31) nut    G, g    Rocker panel assembly mark            --
 C, c    Front door hinge installation nut                  8 (0.31) nut    H, h    Roof side rail assembly mark          --
 D, d    Front door hinge installation nut                  8 (0.31) nut    I, i    Center body pillar assembly mark      --
 E, e    Front body pillar assembly mark                        --          J, j    Center body pillar assembly mark      --
