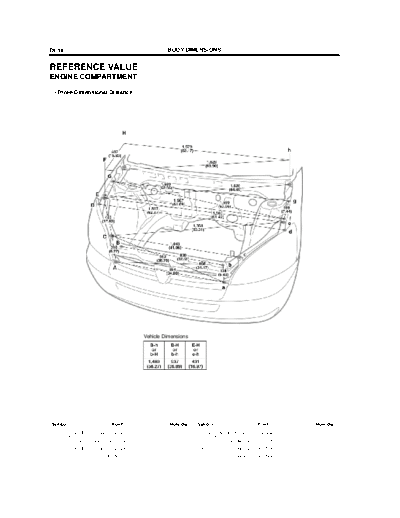

Image preview - the first page of the document
referenc


>> Download referenc documenatation <<

Text preview - extract from the document
DI-14                                                  BODY DIMENSIONS


REFERENCE VALUE
ENGINE COMPARTMENT

 (Three-Dimensional Distance)




                                              Vehicle Dimensions




                                                                                                                mm (in.)
Symbol                       Point                      Hole dia.   Symbol                        Point       Hole dia.
 A, a    Headlight installation screw                      --        E, e    Headlight installation screw        --
 B, b    Radiator upper support installation bolt          --        F, f    Front fender installation bolt      --
 C, c    Headlight installation screw                      --        G, g    Front fender installation bolt      --
 D, d    Front end of front fender                         --        H, h    Front fender installation bolt      --
