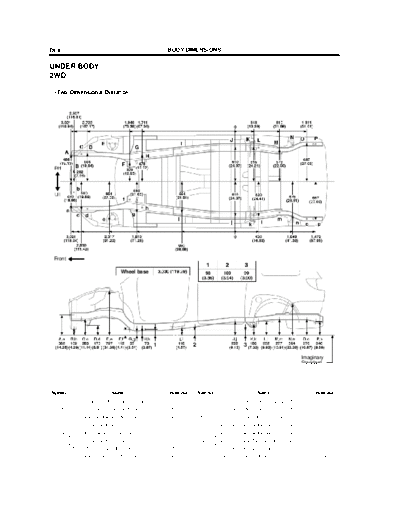

DI-8 BODY DIMENSIONS
UNDER BODY
2WD
(Two-Dimensional Distance)
Front
Wheel base
Imaginary
Standard
Line
mm (in.)
Symbol Name Hole dia. Symbol Name Hole dia.
A, a Front bumper reinforcement installation nut 10 (0.39) nut I, i Front floor under reinforcement standard hole 18 (0.71)
B, b Front crossmember standard hole 15 (0.59) J, j Front floor under reinforcement standard hole 18 (0.71)
C, c Front side member standard hole 18 (0.71) K, k Trailing arm installation hole-inner 15 (0.59)
D, d Front frame installation nut 16 (0.63) nut L, l Rear floor side member standard hole 18 (0.71)
E, e Front spring support hole outer-front 12.5 (0.492) M, m Rear floor side member standard hole 18 (0.71)
F, f Front frame installation nut 16 (0.63) nut N, n Rear shock absorber installation hole 24 (0.94)
G, g Torque box front standard hole 25 (0.98) O, o Rear floor side member standard hole 18 (0.71)
H, h Front side member standard hole 18 (0.71) P, p Transport hook installation nut 12 (0.47) nut
