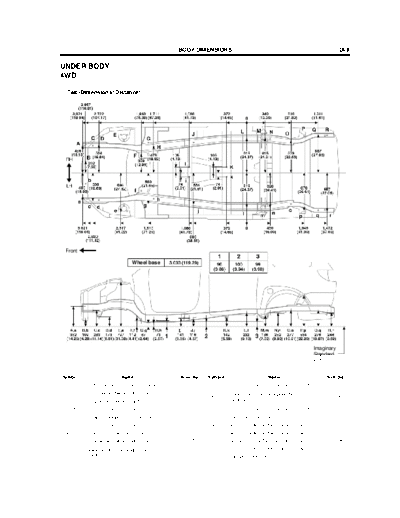

Image preview - the first page of the document



>> Download under0 documenatation <<

Text preview - extract from the document

                                                       BODY DIMENSIONS                                                                  DI-9

UNDER BODY
4WD

 (Two-Dimensional Distance)




 Front

                                   Wheel base




                                                                                                                          Imaginary
                                                                                                                          Standard
                                                                                                                          Line
                                                                                                                                    mm (in.)
Symbol                       Name                       Hole dia.      Symbol                        Name                        Hole dia.
 A, a    Front bumper reinforcement installation nut   10 (0.39) nut    J, j    Front floor under reinforcement standard hole    18 (0.71)
 B, b    Front crossmember standard hole                15 (0.59)               Propeller shaft center support bearing
                                                                        K, k                                                    10 (0.39) nut
 C, c    Front side member standard hole                18 (0.71)               installation nut
 D, d    Front frame installation nut                  16 (0.63) nut    L, l    Front floor under reinforcement standard hole    18 (0.71)
 E, e    Front spring support hole outer-front         12.5 (0.492)    M, m     Trailing arm installation hole-inner             15 (0.59)
 F, f    Front frame installation nut                  16 (0.63) nut    N, n    Rear floor side member standard hole             18 (0.71)
 G, g    Torque box front standard hole                 25 (0.98)       O, o    Rear floor side member standard hole             18 (0.71)
 H, h    Front side member standard hole                18 (0.71)       P, p    Rear shock absorber installation hole            24 (0.94)
         Propeller shaft center support bearing                         Q, q    Rear floor side member standard hole             18 (0.71)
 I, i                                                  10 (0.39) nut
         installation nut                                               R, r    Transport hook installation nut                 12 (0.47) nut
