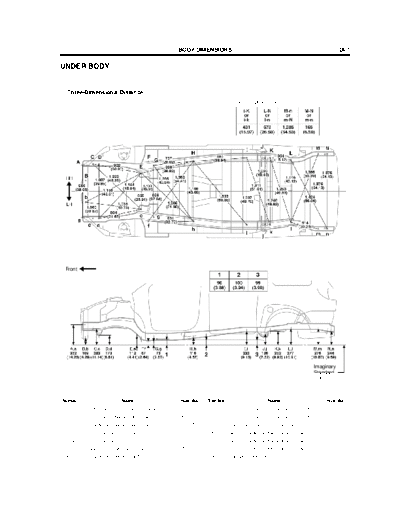

Image preview - the first page of the document
>> Download underbod documenatation <<
Text preview - extract from the document
BODY DIMENSIONS DI-7
UNDER BODY
(Three-Dimensional Distance)
Vehicle Dimensions
Front
Imaginary
Standard
Line
mm (in.)
Symbol Name Hole dia. Symbol Name Hole dia.
A, a Front bumper reinforcement installation nut 10 (0.39) nut H, h Front floor under reinforcement standard hole 18 (0.71)
B, b Front crossmember standard hole 15 (0.59) I, i Front floor under reinforcement standard hole 18 (0.71)
C, c Front side member standard hole 18 (0.71) J, j Trailing arm installation hole-inner 15 (0.59)
D, d Front frame installation nut 16 (0.63) nut K, k Rear floor side member standard hole 18 (0.71)
E, e Front frame installation nut 16 (0.63) nut L, l Rear floor side member standard hole 18 (0.71)
F, f Torque box front standard hole 25 (0.98) M, m Rear floor side member standard hole 18 (0.71)
G, g Front side member standard hole 18 (0.71) N, n Transport hook installation nut 12 (0.47) nut
