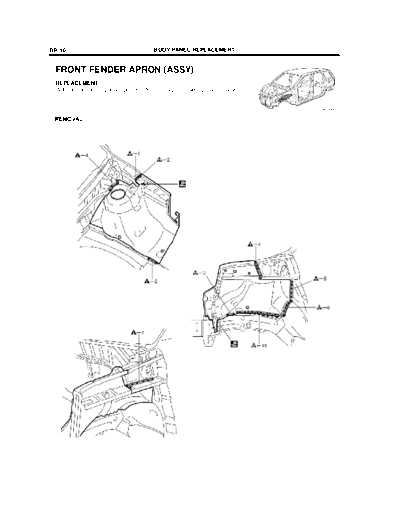

Image preview - the first page of the document



>> Download front documenatation <<

Text preview - extract from the document

BP-10                                   BODY PANEL REPLACEMENT


 FRONT FENDER APRON (ASSY)
 REPLACEMENT
 With the radiator upper support and front body pillar lower gusset removed.


                                                                               F14960-A

 REMOVAL




                                                                                F14960
                                         BODY PANEL REPLACEMENT                                                 BP-11


INSTALLATION
S Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension
  diagram. (See the body dimension diagram)
S Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
  finish.
S After welding, apply the polyurethane foam to the corresponding parts.
S After welding, apply body sealer and under-coating to the corresponding parts.
S After applying the top coat layer, apply anti-rust agent to the inside of the necked section structural weld spots.




                                                                                                                 F14961

POINT
1   Make sure each measurement is correct, as this parts affects the front wheel alignment.


13mm (0.51in.)           15mm (0.59in.)
BP-12                                    BODY PANEL REPLACEMENT




                                                                  F14962

 POINT
 1   *1: The value is reference value.


 213mm (8.39in.)
