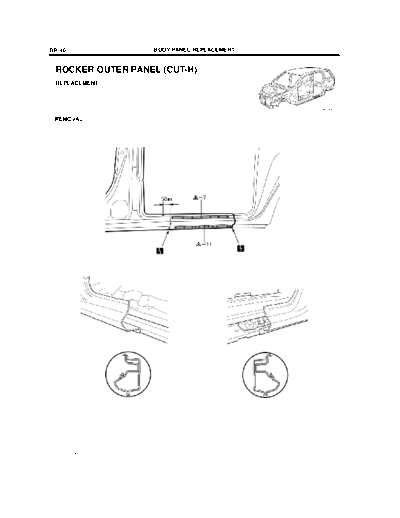

Image preview - the first page of the document
>> Download rocke0 documenatation <<
Text preview - extract from the document
BP-40 BODY PANEL REPLACEMENT
ROCKER OUTER PANEL (CUT-H)
REPLACEMENT
F14991-A
REMOVAL
F14991
50mm (1.97in.)
BODY PANEL REPLACEMENT BP-41
INSTALLATION
S Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension
diagram. (See the body dimension diagram)
S Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
finish.
S After welding, apply the polyurethane foam to the corresponding parts.
S After welding, apply body sealer and under-coating to the corresponding parts.
S After applying the top coat layer, apply anti-rust agent to the inside of the necked section structural weld spots.
F14992
POINT
1 Inspect the fitting of the slide door, etc., before welding, since this affects the appearance of the finish.
