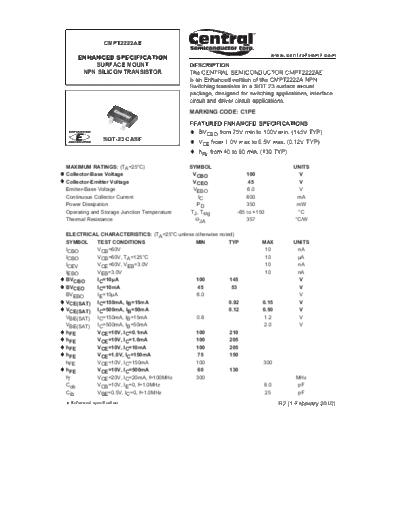

Image preview - the first page of the document
>> Download cmpt2222ae documenatation <<Text preview - extract from the document CMPT2222AE
w w w. c e n t r a l s e m i . c o m
ENHANCED SPECIFICATION
SURFACE MOUNT DESCRIPTION:
NPN SILICON TRANSISTOR The CENTRAL SEMICONDUCTOR CMPT2222AE
is an Enhanced version of the CMPT2222A NPN
Switching transistor in a SOT-23 surface mount
package, designed for switching applications, interface
circuit and driver circuit applications.
MARKING CODE: C1PE
FEATURED ENHANCED SPECIFICATIONS:
BVCBO from 75V min to 100V min. (145V TYP)
SOT-23 CASE VCE from 1.0V max to 0.5V max. (0.12V TYP)
hFE from 40 to 60 min. (130 TYP)
MAXIMUM RATINGS: (TA=25
