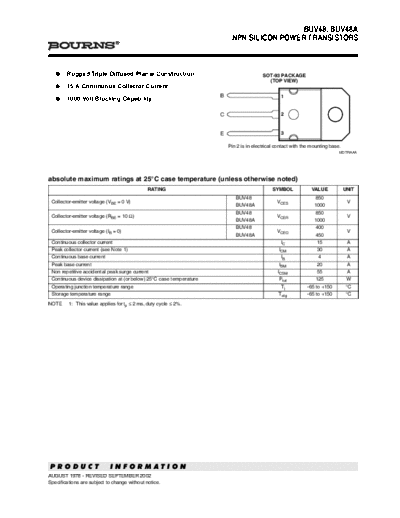

Image preview - the first page of the document
>> Download buv48-a documenatation <<Text preview - extract from the document BUV48, BUV48A
NPN SILICON POWER TRANSISTORS
Rugged Triple-Diffused Planar Construction SOT-93 PACKAGE
(TOP VIEW)
15 A Continuous Collector Current
B 1
1000 Volt Blocking Capability
C 2
E 3
Pin 2 is in electrical contact with the mounting base.
MDTRAAA
absolute maximum ratings at 25
