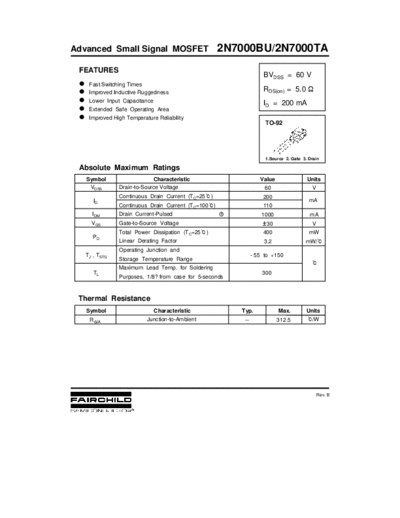

Image preview - the first page of the document



>> Download 2n7000bu documenatation <<

Text preview - extract from the document

Advanced Small Signal MOSFET                       2N7000BU/2N7000TA
 FEATURES
                                                                  BVDSS = 60 V
 n Fast Switching Times
 n Improved Inductive Ruggedness
                                                                  RDS(on) = 5.0
 n Lower Input Capacitance                                        ID = 200 mA
 n Extended Safe Operating Area
 n Improved High Temperature Reliability
                                                                   TO-92




                                                                   1.Source 2. Gate 3. Drain

 Absolute Maximum Ratings
   Symbol                   Characteristic                       Value                Units
     VDSS      Drain-to-Source Voltage                             60                   V
               Continuous Drain Current (TC=25)                   200
      ID                                                                               mA
               Continuous Drain Current (TC=100)                  110
     IDM       Drain Current-Pulsed                               1000                 mA
     VGS       Gate-to-Source Voltage
