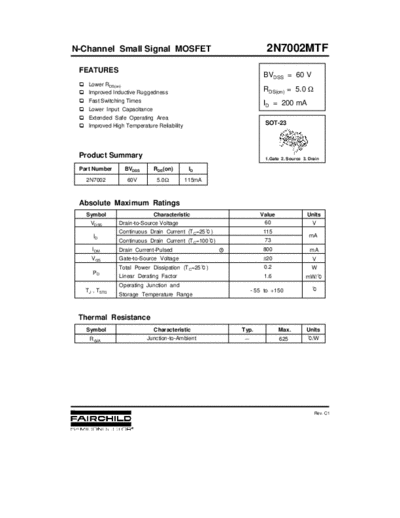

>> Download 2n7002mtf documenatation <<Text preview - extract from the documentN-Channel Small Signal MOSFET 2N7002MTF
FEATURES
BVDSS = 60 V
! Lower RDS(on)
! Improved Inductive Ruggedness
RDS(on) = 5.0
! Fast Switching Times ID = 200 mA
! Lower Input Capacitance
! Extended Safe Operating Area
! Improved High Temperature Reliability
SOT-23
Product Summary 1.Gate 2. Source 3. Drain
Part Number BVDSS RDS(on) ID
2N7002 60V 5.0 115mA
Absolute Maximum Ratings
Symbol Characteristic Value Units
VDSS Drain-to-Source Voltage 60 V
Continuous Drain Current (TC=25) 115
ID mA
Continuous Drain Current (TC=100) 73
IDM Drain Current-Pulsed 800 mA
VGS Gate-to-Source Voltage
