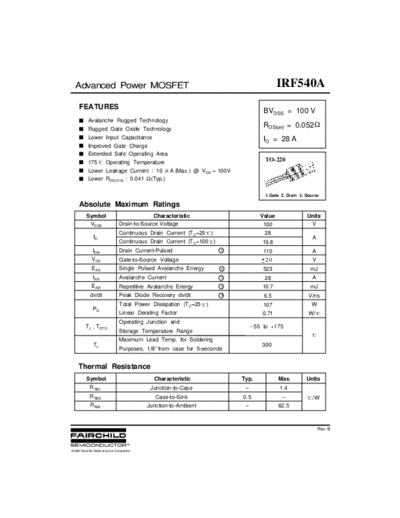

Image preview - the first page of the document



>> Download irf540a documenatation <<

Text preview - extract from the document

   Advanced Power MOSFET                                                                        IRF540A
     FEATURES
                                                                                         BVDSS = 100 V
           Avalanche Rugged Technology
           Rugged Gate Oxide Technology
                                                                                         RDS(on) = 0.052
           Lower Input Capacitance                                                       ID = 28 A
           Improved Gate Charge
           Extended Safe Operating Area

           175 C Operating Temperature
                                                                                           TO-220
           Lower Leakage Current : 10
