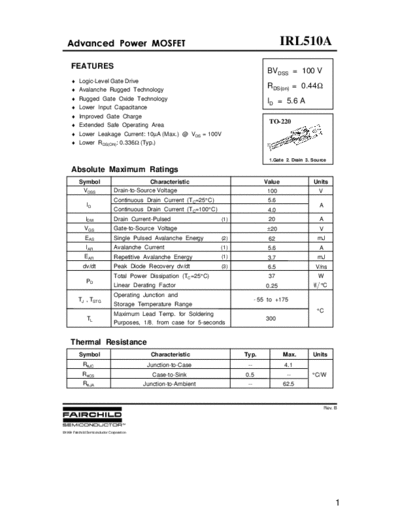

Image preview - the first page of the document



>> Download irl510a documenatation <<

Text preview - extract from the document

   $GYDQFHG 3RZHU 026)(7                                                                      IRL510A
     FEATURES
                                                                                       BVDSS = 100 V
      Logic-Level Gate Drive
      Avalanche Rugged Technology
                                                                                       RDS(on) = 0.44
      Rugged Gate Oxide Technology                                                     ID = 5.6 A
      Lower Input Capacitance
      Improved Gate Charge
      Extended Safe Operating Area
                                                                                         TO-220
      Lower Leakage Current: 10
