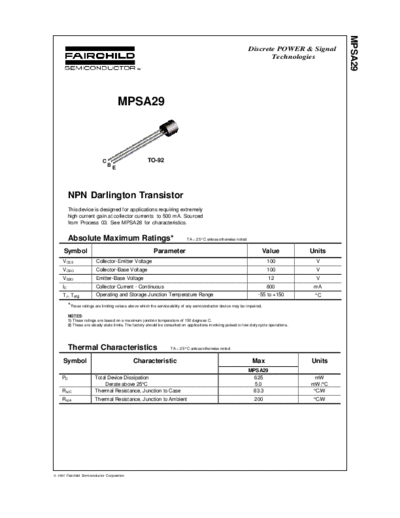

Image preview - the first page of the document
>> Download mpsa29 documenatation <<Text preview - extract from the document MPSA29
Discrete POWER & Signal
Technologies
MPSA29
C TO-92
BE
NPN Darlington Transistor
This device is designed for applications requiring extremely
high current gain at collector currents to 500 mA. Sourced
from Process 03. See MPSA28 for characteristics.
Absolute Maximum Ratings* TA = 25
