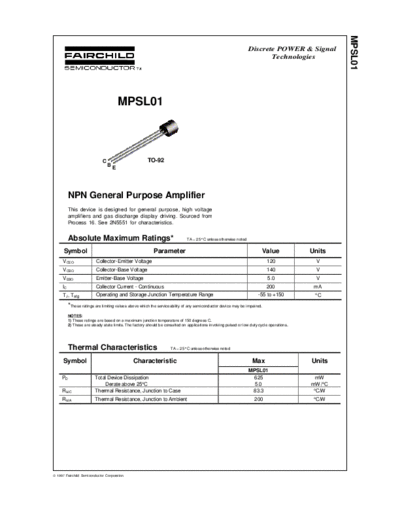

Image preview - the first page of the document



>> Download mpsl01 documenatation <<

Text preview - extract from the document

                                                                                                                                                     MPSL01
                                                                                                                   Discrete POWER & Signal
                                                                                                                          Technologies




                                      MPSL01



                             C                          TO-92
                                 BE




          NPN General Purpose Amplifier
          This device is designed for general purpose, high voltage
          amplifiers and gas discharge display driving. Sourced from
          Process 16. See 2N5551 for characteristics.


          Absolute Maximum Ratings*                                            TA = 25
