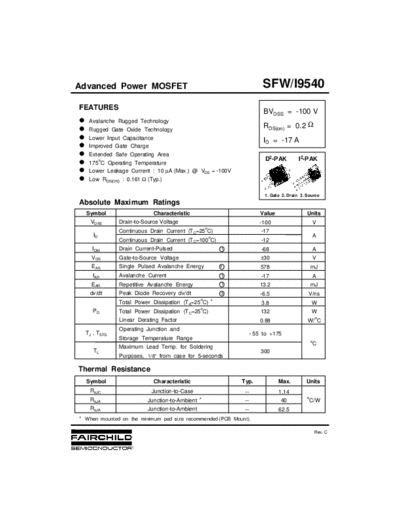

Image preview - the first page of the document
>> Download sfw9540 documenatation <<Text preview - extract from the documentAdvanced Power MOSFET SFW/I9540
FEATURES
BVDSS = -100 V
n Avalanche Rugged Technology
n Rugged Gate Oxide Technology
RDS(on) = 0.2
n Lower Input Capacitance ID = -17 A
n Improved Gate Charge
n Extended Safe Operating Area
o D2-PAK I2-PAK
n 175 C Operating Temperature
n Lower Leakage Current : 10
