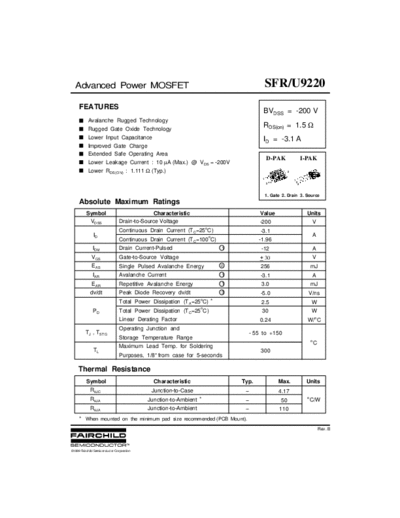

   Advanced Power MOSFET                                                                         SFR/U9220
     FEATURES
                                                                                             BVDSS = -200 V
           Avalanche Rugged Technology
           Rugged Gate Oxide Technology
                                                                                             RDS(on) = 1.5
           Lower Input Capacitance                                                           ID = -3.1 A
           Improved Gate Charge
           Extended Safe Operating Area
                                                                                                 D-PAK                       I-PAK
           Lower Leakage Current : 10
