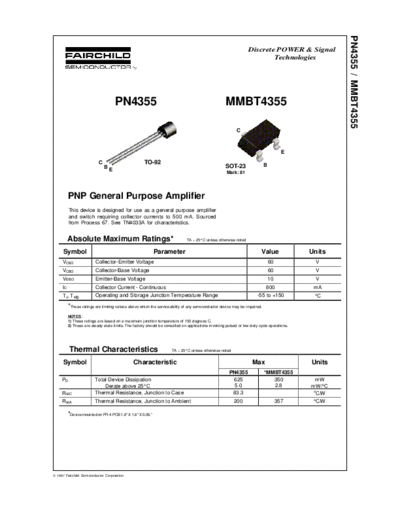

Image preview - the first page of the document



>> Download pn4355 documenatation <<

Text preview - extract from the document

                                                                                                                                                     PN4355 / MMBT4355
                                                                                                                  Discrete POWER & Signal
                                                                                                                         Technologies




                                     PN4355                                                          MMBT4355

                                                                                                            C



                                                                                                                                      E
                            C                         TO-92
                                BE                                                                   SOT-23                B
                                                                                                      Mark: 81




          PNP General Purpose Amplifier
          This device is designed for use as a general purpose amplifier
          and switch requiring collector currents to 500 mA. Sourced
          from Process 67. See TN4033A for characteristics.


          Absolute Maximum Ratings*                                            TA = 25
