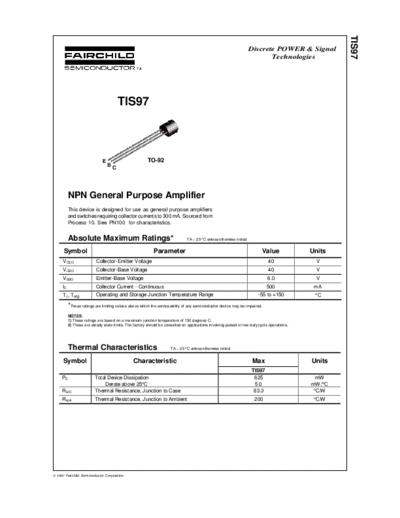

                                                                                                                                                     TIS97
                                                                                                                   Discrete POWER & Signal
                                                                                                                          Technologies




                                      TIS97



                             E                          TO-92
                                 BC




          NPN General Purpose Amplifier
          This device is designed for use as general purpose amplifiers
          and switches requiring collector currents to 300 mA. Sourced from
          Process 10. See PN100 for characteristics.


          Absolute Maximum Ratings*                                            TA = 25
