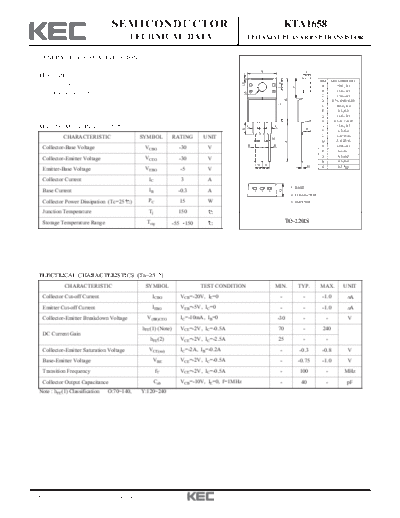

Image preview - the first page of the document
>> Download kta1658 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTA1658
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
GENERAL PURPOSE APPLICATION.
A C
FEATURES
DIM MILLIMETERS
F
Good Linearity of hFE. S
A _
10.0 + 0.3
P
B _
15.0 + 0.3
Complementary to KTC4369. E
C _
2.70 + 0.3
B
D 0.76+0.09/-0.05
G
E 3.2 + 0.2
_
F _
3.0 + 0.3
G _
12.0 + 0.3
H 0.5+0.1/-0.05
_
MAXIMUM RATING (Ta=25 ) L L J 13.6 + 0.5
K
R _
K 3.7 + 0.2
CHARACTERISTIC SYMBOL RATING UNIT L 1.2+0.25/-0.1
M
M 1.5+0.25/-0.1
J
D D N _
2.54 + 0.1
Collector-Base Voltage VCBO -30 V
P _
6.8 + 0.1
Q _
4.5 + 0.2
Collector-Emitter Voltage VCEO -30 V _
2.6 + 0.2
R
N N H S 0.5 Typ
Emitter-Base Voltage VEBO -5 V
Collector Current IC 3 A
1. BASE
Base Current IB -0.3 A
Q
1 2 3
2. COLLECTOR
Collector Power Dissipation (Tc=25 ) PC 15 W 3. EMITTER
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150 TO-220IS
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-20V, IE=0 - - -1.0 A
Emitter Cut-off Current IEBO VEB=-5V, IC=0 - - -1.0 A
Collector-Emitter Breakdown Voltage V(BR)CEO IC=-10mA, IB=0 -30 - - V
hFE(1) (Note) VCE=-2V, IC=-0.5A 70 - 240
DC Current Gain
hFE(2) VCE=-2V, IC=-2.5A 25 - -
Collector-Emitter Saturation Voltage VCE(sat) IC=-2A, IB=-0.2A - -0.3 -0.8 V
Base-Emitter Voltage VBE VCE=-2V, IC=-0.5A - -0.75 -1.0 V
Transition Frequency fT VCE=-2V, IC=-0.5A - 100 - MHz
Collector Output Capacitance Cob VCB=-10V, IE=0, f=1MHz - 40 - pF
Note : hFE(1) Classification O:70~140, Y:120~240
2007. 5. 21 Revision No : 1 1/1
