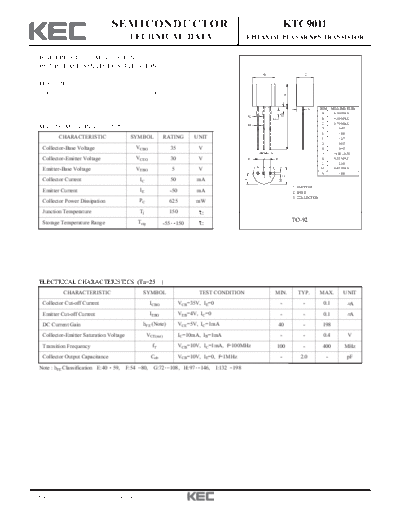

Image preview - the first page of the document
ktc9011


>> Download ktc9011 documenatation <<

Text preview - extract from the document
                                    SEMICONDUCTOR                                                                                          KTC9011
                                                TECHNICAL DATA                                             EPITAXIAL PLANAR NPN TRANSISTOR


  HIGH FREQUENCY APPLICATION.
  HF, VHF BAND AMPLIFIER APPLICATION.
                                                                                                                       B                            C

  FEATURE
    High Power Gain : Gpe=29dB(Typ.) at f=10.7MHz.




                                                                                                                                           A
                                                                                                                                                        N     DIM    MILLIMETERS
                                                                                                                                       E                       A      4.70 MAX
                                                                                                               K
                                                                                                                               G                               B      4.80 MAX
                                                                                                               D                                               C      3.70 MAX
  MAXIMUM RATING (Ta=25                    )




                                                                                                                                           J
                                                                                                                                                               D          0.45
                                                                                                                                                               E          1.00
          CHARACTERISTIC                        SYMBOL               RATING       UNIT                                                                         F          1.27
                                                                                                                                                               G          0.85
   Collector-Base Voltage                         VCBO                 35           V                                                                          H          0.45
                                                                                                                           H                                   J            _
                                                                                                                                                                      14.00 + 0.50
   Collector-Emitter Voltage                      VCEO                 30           V                          F                   F                           K      0.55 MAX
                                                                                                                                                               L          2.30
   Emitter-Base Voltage                           VEBO                  5           V                                                                          M      0.45 MAX
                                                                                                                                                               N         1.00




                                                                                                                                           C
                                                                                                                   1   2   3
                                                    IC




                                                                                                           L
   Collector Current                                                   50          mA




                                                                                                                                       M
                                                                                                                                               1. EMITTER
   Emitter Current                                  IE                 -50         mA                                                          2. BASE
                                                                                                                                               3. COLLECTOR
   Collector Power Dissipation                     PC                  625         mW
   Junction Temperature                             Tj                 150
   Storage Temperature Range                       Tstg              -55 150
                                                                                                                                               TO-92




  ELECTRICAL CHARACTERISTICS (Ta=25                               )
              CHARACTERISTIC                         SYMBOL                         TEST CONDITION                             MIN.              TYP.         MAX.         UNIT
   Collector Cut-off Current                               ICBO              VCB=35V, IE=0                                             -           -           0.1            A
   Emitter Cut-off Current                                 IEBO              VEB=4V, IC=0                                              -           -           0.1            A
   DC Current Gain                                   hFE (Note)              VCE=5V, IC=1mA                                            40          -           198
   Collector-Emitter Saturation Voltage                   VCE(sat)           IC=10mA, IB=1mA                                           -           -           0.4            V
   Transition Frequency                                     fT               VCB=10V, IC=1mA, f=100MHz                             100             -           400          MHz
   Collector Output Capacitance                             Cob              VCB=10V, IE=0, f=1MHz                                     -          2.0           -            pF
  Note : hFE Classification E:40     59,       F:54 80,      G:72 108, H:97          146,    I:132   198




1994. 5. 11                        Revision No : 0                                                                                                                                   1/1
