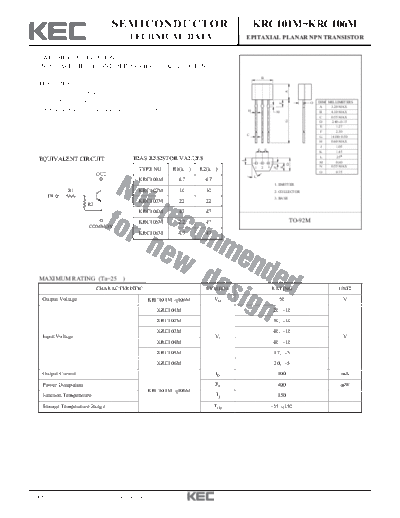

Image preview - the first page of the document
>> Download krc101m-106m documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRC101M~KRC106M
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
B
FEATURES
A
With Built-in Bias Resistors.
Simplify Circuit Design. O DIM MILLIMETERS
F
A 3.20 MAX
Reduce a Quantity of Parts and Manufacturing Process. H M B 4.30 MAX
C 0.55 MAX
G
D _
2.40 + 0.15
E 1.27
F 2.30
C _
G 14.00+ 0.50
H 0.60 MAX
J 1.05
E E
K 1.45
L 25
EQUIVALENT CIRCUIT BIAS RESISTOR VALUES
J
M 0.80
D
K
1 2 3 N N 0.55 MAX
TYPE NO. R1(k ) R2(k ) O 0.75
OUT L
KRC101M 4.7 4.7
1. EMITTER
R1 KRC102M 10 10 2. COLLECTOR
IN 3. BASE
KRC103M 22 22
R2
KRC104M 47 47
KRC105M 2.2 47 TO-92M
COMMON
KRC106M 4.7 47
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRC101M 106M VO 50 V
KRC101M 20, -10
KRC102M 30, -10
KRC103M 40, -10
Input Voltage VI V
KRC104M 40, -10
KRC105M 12, -5
KRC106M 20, -5
Output Current IO 100 mA
Power Dissipation PD 400 mW
KRC101M 106M
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
2008. 11. 20 Revision No : 4 1/6
KRC101M~KRC106M
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRC101M 106M IO(OFF) VO=50V, VI=0 - - 500 nA
KRC101M 30 55 -
KRC102M 50 80 -
KRC103M 70 120 -
DC Current Gain GI VO=5V, IO=10mA
KRC104M 80 200 -
KRC105M 80 200 -
KRC106M 80 200 -
Output Voltage KRC101M 106M VO(ON) IO=10mA, II=0.5mA - 0.1 0.3 V
KRC101M - 1.5 2.0
KRC102M - 1.8 2.4
KRC103M - 2.1 3.0
Input Voltage (ON) VI(ON) VO=0.2V, IO=5mA V
KRC104M - 2.8 5.0
KRC105M - 0.8 1.1
KRC106M - 0.9 1.3
KRC101M 104M 1.0 1.2 -
Input Votlage (OFF) VI(OFF) VO=5V, IO=0.1mA V
KRC105M 106M 0.5 0.65 -
Transition Frequency KRC101M 106M fT * VO=10V, IO=5mA - 200 - MHz
KRC101M - - 1.8
KRC102M - - 0.88
KRC103M - - 0.36
Input Current II VI=5V mA
KRC104M - - 0.18
KRC105M - - 3.6
KRC106M - - 1.8
KRC101M 3.29 4.7 6.11
KRC102M 7 10 13
KRC103M 15.4 22 28.6
Input Resistor R1 - k
KRC104M 32.9 47 61.1
KRC105M 1.54 2.2 2.86
KRC106M 3.29 4.7 6.11
KRC101M 104M 0.8 1.0 1.2
Resistor Ratio KRC105M R2/R1 - 17 21 26
KRC106M 8 10 12
Note : * Characteristic of Transistor Only.
2008. 11. 20 Revision No : 4 2/6
KRC101M~KRC106M
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
KRC101M - 0.03 -
KRC102M - 0.05 -
KRC103M - 0.12 -
Rise Time tr
KRC104M - 0.22 -
KRC105M - 0.01 -
KRC106M - 0.03 -
KRC101M - 2.0 -
KRC102M - 2.0 -
VO=5V
Switching KRC103M - 2.0 -
Storage Time tstg VIN=5V S
Time KRC104M - 2.0 -
RL=1k
KRC105M - 2.0 -
KRC106M - 2.0 -
KRC101M - 0.12 -
KRC102M - 0.36 -
KRC103M - 0.35 -
Fall Time tf
KRC104M - 0.6 -
KRC105M - 0.1 -
KRC106M - 0.19 -
2008. 11. 20 Revision No : 4 3/6
KRC101M~KRC106M
I O - VI(ON) I O - VI(ON)
KRC101M KRC102M
100 100
VO =0.2V 25 VO =0.2V
OUTPUT CURRENT I O (mA)
OUTPUT CURRENT I O (mA)
50 -25 50
30 100 30
10 10
Ta=25 C
00 C
5 5
C
Ta=-25 C Ta=25 C
00
3 3
Ta=1
Ta=1
Ta=-25 C
1 1
0.5 0.5
0.3 0.3
0.1 0.3 1 3 10 30 100 0.1 0.3 1 3 10 30 100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - VI(ON) I O - VI(ON)
KRC103M KRC104M
100 100
VO =0.2V VO =0.2V
OUTPUT CURRENT I O (mA)
OUTPUT CURRENT I O (mA)
50 50
30 30
10 10
C
C
5 5
100
00
Ta=25 C Ta=25 C
3 3 =1
Ta=
Ta=-25 C
Ta
Ta=-25 C
1 1
0.5 0.5
0.3 0.3
0.1 0.3 1 3 10 30 100 0.1 0.3 1 3 10 30 100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - V I(ON) I O - VI(ON)
KRC105M KRC106M
100 100
VO =0.2V VO =0.2V
OUTPUT CURRENT I O (mA)
OUTPUT CURRENT I O (mA)
50 50
30 30
10 10
00 C
00 C
5 5
Ta=25 C
Ta=1
Ta=1
3 3 Ta=25 C
Ta=-25 C Ta=-25 C
1 1
0.5 0.5
0.3 0.3
0.1 0.3 1 3 10 30 100 0.1 0.3 1 3 10 30 100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
2008. 11. 20 Revision No : 4 4/6
KRC101M~KRC106M
I O - VI(OFF) I O - V I(OFF)
KRC101M KRC102M
10k 10k
VO =5V VO =5V
5k 5k
