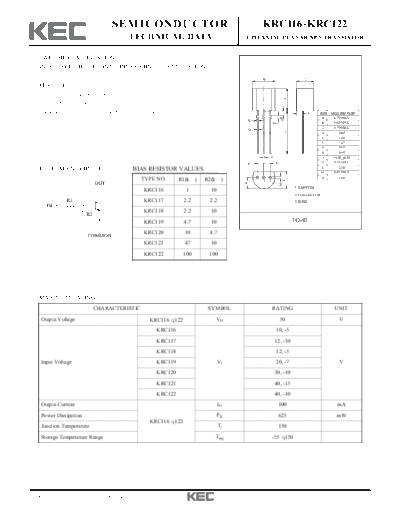

Image preview - the first page of the document
>> Download krc116-122 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRC116~KRC122
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION
B C
FEATURES
With Built-in Bias Resistors.
A
Simplify Circuit Design.
Reduce a Quantity of Parts and Manufacturing Process. N DIM MILLIMETERS
E A 4.70 MAX
K
G B 4.80 MAX
D C 3.70 MAX
D 0.45
J
E 1.00
F 1.27
G 0.85
H 0.45
H J _
14.00 + 0.50
F F K 0.55 MAX
L 2.30
EQUIVALENT CIRCUIT BIAS RESISTOR VALUES M 0.45 MAX
TYPE NO. N 1.00
R1(k ) R2(k ) 1 2 3
C
OUT
L
M
1. EMITTER
KRC116 1 10
2. COLLECTOR
R1 KRC117 2.2 2.2 3. BASE
IN
KRC118 2.2 10
R2
KRC119 4.7 10 TO-92
KRC120 10 4.7
COMMON
KRC121 47 10
KRC122 100 100
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRC116 122 VO 50 V
KRC116 10, -5
KRC117 12, -10
KRC118 12, -5
Input Voltage KRC119 VI 20, -7 V
KRC120 30, -10
KRC121 40, -15
KRC122 40, -10
Output Current IO 100 mA
Power Dissipation PD 625 mW
KRC116 122
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
2011. 6. 14 Revision No : 1 1/7
KRC116~KRC122
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRC116 122 IO(OFF) VO=50V, VI=0 - - 500 nA
KRC116 VO=5V, IO=5mA 33 - -
KRC117 VO=5V, IO=20mA 20 - -
KRC118 VO=5V, IO=10mA 33 - -
DC Current Gain KRC119 GI VO=5V, IO=10mA 30 - -
KRC120 VO=5V, IO=10mA 24 - -
KRC121 VO=5V, IO=5mA 33 - -
KRC122 VO=5V, IO=5mA 62 - -
KRC116 IO=10mA, II=0.5mA - - 0.3
KRC117 IO=10mA, II=0.5mA - 0.1 0.3
KRC118 IO=10mA, II=0.5mA - - 0.3
Output Voltage KRC119 VO(ON) IO=10mA, II=0.5mA - 0.1 0.3 V
KRC120 IO=10mA, II=0.5mA - 0.1 0.3
KRC121 IO=10mA, II=0.5mA - 0.1 0.3
KRC122 IO=5mA, II=0.25mA - 0.1 0.3
KRC116 VO=0.3V, IO=20mA - 0.98 3
KRC117 VO=0.3V, IO=20mA - 1.83 3
KRC118 VO=0.3V, IO=20mA - 1.22 3
Input Voltage (ON) KRC119 VI(ON) VO=0.3V, IO=20mA - 1.76 2.5 V
KRC120 VO=0.3V, IO=2mA - 2 3
KRC121 VO=0.3V, IO=2mA - 3.9 5
KRC122 VO=0.3V, IO=1mA - 1.64 3
KRC116 0.3 0.63 -
KRC117 0.5 1.15 -
KRC118 0.3 0.67 -
Input Voltage (OFF) KRC119 VI(OFF) VCC=5V, IO=100 A 0.3 0.82 - V
KRC120 0.8 1.68 -
KRC121 1 3.09 -
KRC122 0.5 1.17 -
Transition Frequency KRC116 122 fT* VO=10V, IO=5mA - 250 - MHz
KRC116 - - 7.2
KRC117 - - 3.8
KRC118 - - 3.8
Input Current KRC119 II VI=5V - - 1.8 mA
KRC120 - - 0.88
KRC121 - - 0.16
KRC122 - - 0.15
KRC116 0.7 1 1.3
KRC117 1.54 2.2 2.86
KRC118 1.54 2.2 2.86
Input Resistor KRC119 R1 - 3.29 4.7 6.11 k
KRC120 7 10 13
KRC121 32.9 47 61.1
KRC122 70 100 130
Note : * Characteristic of Transistor Only.
2011. 6. 14 Revision No : 1 2/7
KRC116~KRC122
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
KRC116 - 0.01 -
KRC117 - 0.03 -
KRC118 - 0.02 -
Rise
KRC119 tr - 0.05 -
Time
KRC120 - 0.12 -
KRC121 - 0.30 -
KRC122 - 0.35 -
KRC116 - 3 -
KRC117 - 2 -
KRC118 VO=5V - 3 -
Switching Storage
KRC119 tstg VIN=5V - 3 - S
Time Time
KRC120 RL=1k - 2 -
KRC121 - 2 -
KRC122 - 2 -
KRC116 - 0.1 -
KRC117 - 0.19 -
KRC118 - 0.1 -
Fall
KRC119 tf - 0.36 -
Time
KRC120 - 0.35 -
KRC121 - 0.5 -
KRC122 - 0.7 -
2011. 6. 14 Revision No : 1 3/7
KRC116~KRC122
I O - V I(ON) I O - V I(ON)
KRC116 KRC117
100 100
50 50
OUTPUT CURRENT IO (mA)
OUTPUT CURRENT I O (mA)
30
30
10
10 5
Ta=25 C
5 3 Ta=-25 C
Ta=25 C
3 Ta=-25 C Ta=100 C
Ta=100 C 1
0.5
1 0.3
0.5 VO =0.2V VO =0.2V
0.3 0.1
0.1 0.3 1 3 10 0.1 0.3 1 3 10
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - V I(OFF) I O - V I(OFF)
KRC116 KRC117
3k 3k
