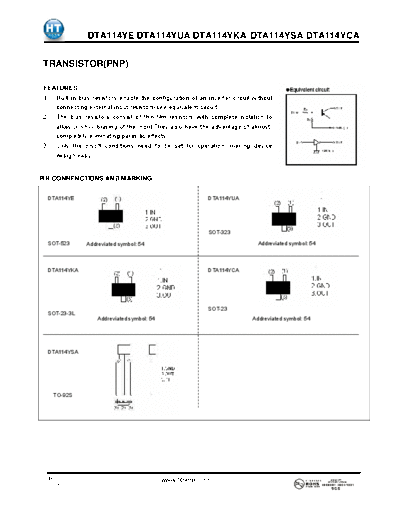

Image preview - the first page of the document



>> Download dta114yca documenatation <<

Text preview - extract from the document

                DTA114YE/DTA114YUA/DTA114YKA /DTA114YSA/DTA114YCA


 TRANSISTOR(PNP)

 FEATURES
 1. Built-in bias resistors enable the configuration of an inverter circuit without
    connecting external input resistors(see equivalent circuit).
 2. The bias resistors consist of thin-film resistors with complete isolation to
    allow positive biasing of the input.They also have the advantage of almost
    completely eliminating parasitic effects.
 3. Only the on/off conditions need to be set for operation, making device
    design easy.


PIN CONNENCTIONS AND MARKING


  DTA114YE                                                  DTC114EUA
                                                            DTA114YUA




                                                            SOT-323

  SOT-523       Addreviated symbol: 54                                       Addreviated symbol: 54



  DTA114YKA                                                 DTA114YCA




                                                            SOT-23
  SOT-23-3L
                    Addreviated symbol: 54                                 Addreviated symbol: 54




  DTA114YSA




      TO-92S




  1




  JinYu                                      www.htsemi.com
  semiconductor
                                                                                                    Date:2011/05
                   DTA114YE/DTA114YUA/DTA114YKA /DTA114YSA/DTA114YCA
Absolute maximum ratings(Ta=25)
                                                                        Limits (DTA114Y )
                Parameter               Symbol                                                                        Unit
                                                          E      UA            KA           CA          SA
Supply voltage                            VCC                                  -50                                     V
Input voltage                             VIN                                -40to+6                                   V
                                           IO                                  -70                                    mA
Output current
                                         IC(Max.)                             -100                                    mA
Power dissipation                          PC         150                     200                       300           mW
Junction temperature                       Tj                                 150

Storage temperature                       Tstg                             -55 to+ 150


Electrical characteristics (Ta=25)
      Parameter             Symbol     Min.         Typ        Max.          Unit                   Conditions
                             VI(off)                            -0.3                             VCC=-5V ,IO=-100
