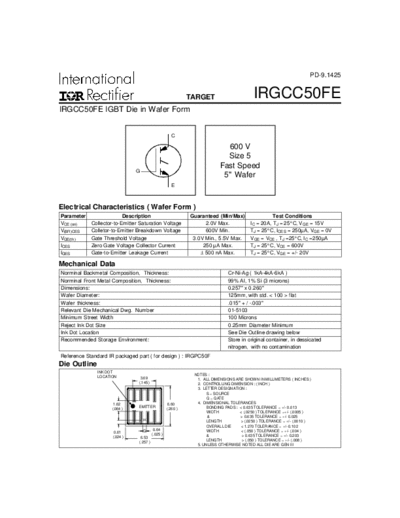

Image preview - the first page of the document



>> Download irgcc50fe documenatation <<

Text preview - extract from the document

                                                                                                                       PD-9.1425


                                                              TARGET                       IRGCC50FE
IRGCC50FE IGBT Die in Wafer Form


                                                      C

                                                                             600 V
                                                                             Size 5
                                                                           Fast Speed
                               G
                                                                            5" Wafer
                                                      E



Electrical Characteristics ( Wafer Form )
Parameter                 Description                         Guaranteed (Min/Max)            Test Conditions
VCE (on)    Collector-to-Emitter Saturation Voltage                 2.0V Max.       IC = 20A, TJ = 25
