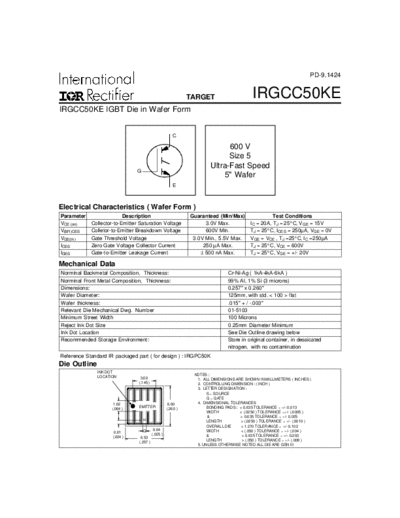

Image preview - the first page of the document



>> Download irgcc50ke documenatation <<

Text preview - extract from the document

                                                                                                                       PD-9.1424


                                                              TARGET                       IRGCC50KE
IRGCC50KE IGBT Die in Wafer Form


                                                       C

                                                                            600 V
                                                                            Size 5
                                                                      Ultra-Fast Speed
                               G
                                                                          5" Wafer
                                                       E



Electrical Characteristics ( Wafer Form )
Parameter                 Description                         Guaranteed (Min/Max)            Test Conditions
VCE (on)    Collector-to-Emitter Saturation Voltage                 3.0V Max.       IC = 20A, TJ = 25
