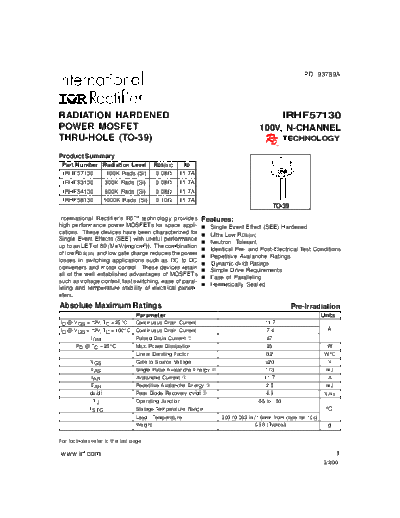

Image preview - the first page of the document



>> Download irhf57130 documenatation <<

Text preview - extract from the document

                                                                                                   PD - 93789A




RADIATION HARDENED                                                                    IRHF57130
POWER MOSFET                                                                     100V, N-CHANNEL
THRU-HOLE (TO-39)                                                                  R5
                                                                                             TECHNOLOGY

Product Summary
 Part Number Radiation Level           RDS(on)     ID
 IRHF57130    100K Rads (Si)            0.08     11.7A
 IRHF53130   300K Rads (Si)             0.08     11.7A
 IRHF54130           600K Rads (Si)     0.08     11.7A
 IRHF58130         1000K Rads (Si)      0.10     11.7A
                                                                                      TO-39
International Rectifier's R5TM technology provides        Features:
high performance power MOSFETs for space appli-           n   Single Event Effect (SEE) Hardened
cations. These devices have been characterized for        n   Ultra Low RDS(on)
Single Event Effects (SEE) with useful performance
                                                          n   Neutron Tolerant
up to an LET of 80 (MeV/(mg/cm2)). The combination
                                                          n   Identical Pre- and Post-Electrical Test Conditions
of low RDS(on) and low gate charge reduces the power
                                                          n   Repetitive Avalanche Ratings
losses in switching applications such as DC to DC         n    Dynamic dv/dt Ratings
converters and motor control. These devices retain
                                                          n   Simple Drive Requirements
all of the well established advantages of MOSFETs
                                                          n   Ease of Paralleling
such as voltage control, fast switching, ease of paral-
                                                          n   Hermetically Sealed
leling and temperature stability of electrical param-
eters.
Absolute Maximum Ratings                                                                      Pre-Irradiation
                                 Parameter                                                                  Units
ID @ VGS = 12V, TC = 25
