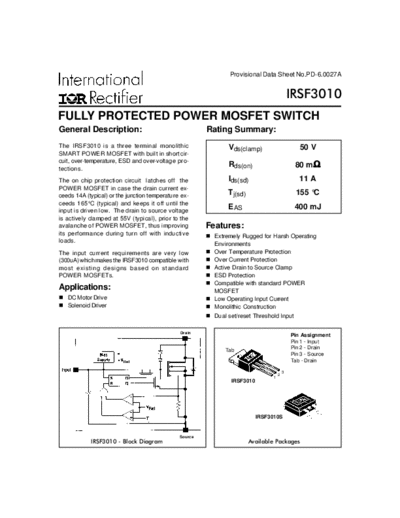

Image preview - the first page of the document



>> Download irsf3010 documenatation <<

Text preview - extract from the document

                                                                Provisional Data Sheet No.PD-6.0027A


                                                                                              IRSF3010
FULLY PROTECTED POWER MOSFET SWITCH
General Description:                                    Rating Summary:
The IRSF3010 is a three terminal monolithic                     Vds(clamp)                       50 V
SMART POWER MOSFET with built in short cir-
                                                                                               80 m
cuit, over-temperature, ESD and over-voltage pro-
tections.
                                                                Rds(on)
The on chip protection circuit latches off the                  Ids(sd)                          11 A
POWER MOSFET in case the drain current ex-
ceeds 14A (typical) or the junction temperature ex-             Tj(sd)                         155
