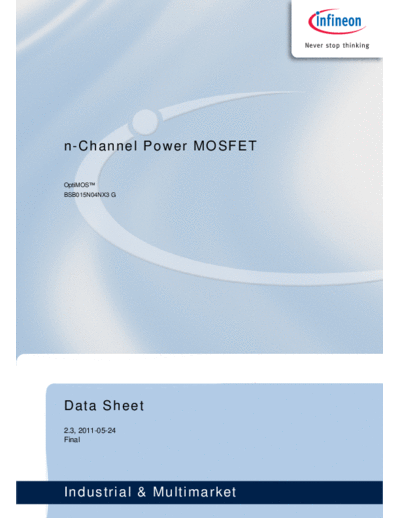

Image preview - the first page of the document
>> Download bsb015n04nx3g_rev2.3_pdf documenatation <<
Text preview - extract from the document
n-Channel Power MOSFET
OptiMOSTM
BSB015N04NX3 G
Data Sheet
2.3, 2011-05-24
Final
Industrial & Multimarket
OptiMOSTM Power-MOSFET
BSB015N04NX3 G
1 Description
OptiMOSTM40V products are class leading power MOSFETs for highest power
density and energy efficient solutions. Ultra low gate- and output charges together
with lowest on state resistance in small footprint packages make OptiMOSTM 40V
the best choice forthe demanding requirements of voltage regulator solutions in
Servers, Datacom and Telecom applications. Super fast switching Control FETs
together with low EMI Sync FETs provide solutions that are easy to design in.
OptiMOSTM products are available in high performance packages to tackle your
most challenging applications giving full flexibility in optimizing space- efficiency
and cost. OptiMOSTM products are designed to meet and exceed the energy
efficiency and power density requirements of the sharpened next generation
voltage regulation standards in computing applications
