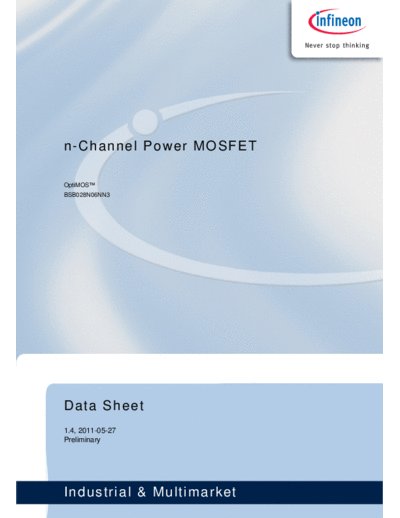

Image preview - the first page of the document
>> Download bsb028n06nn3_rev1.4 documenatation <<
Text preview - extract from the document
n-Channel Power MOSFET
OptiMOSTM
BSB028N06NN3
Data Sheet
1.4, 2011-05-27
Preliminary
Industrial & Multimarket
OptiMOSTM Power-MOSFET
BSB028N06NN3 G
1 Description
OptiMOSTM60V products are class leading power MOSFETs for highest power
density and energy efficient solutions. Ultra low gate- and output charges together
with lowest on state resistance in small footprint packages make OptiMOSTM 60V
the best choice for the demanding requirements of switched mode power supplies
in Servers, Datacom and Telecom applications but also for motor drives. With
almost no parasitic package inductances, the CanPAK allows best controllability
of the gate in highly dynamic switching enviroments. This package in addition
features best cooling capability through top-side cooling of the metal can. Hence,
this packaging technology combined with the OptiMOS silicon enables highest
efficiency levels while having mininal space requirements at the same time.
Features
