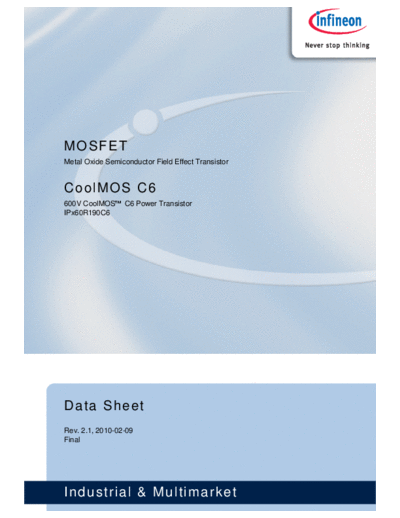

Image preview - the first page of the document



>> Download ipw60r190c6_2_1 documenatation <<

Text preview - extract from the document

MOSFET
Metal Oxide Semiconductor Field Effect Transistor


CoolMOS C6
600V CoolMOSTM C6 Power Transistor
IPx60R190C6




Data Sheet
Rev. 2.1, 2010-02-09
Final




In d u s tr ia l & M u l ti m a r k e t
600V CoolMOSTM C6 Power Transistor                                          IPA60R190C6, IPB60R190C6
                                                                             IPI60R190C6, IPP60R190C6
                                                                                         IPW60R190C6
1              Description
CoolMOSTM is a revolutionary technology for high voltage power
MOSFETs, designed according to the superjunction (SJ) principle
and pioneered by Infineon Technologies. CoolMOSTM C6 series
combines the experience of the leading SJ MOSFET supplier with
high class innovation. The offered devices provide all benefits of a
fast switching SJ MOSFET while not sacrificing ease of use.
Extremely low switching and conduction losses make switching
applications even more efficient, more compact, lighter, and cooler.

Features
