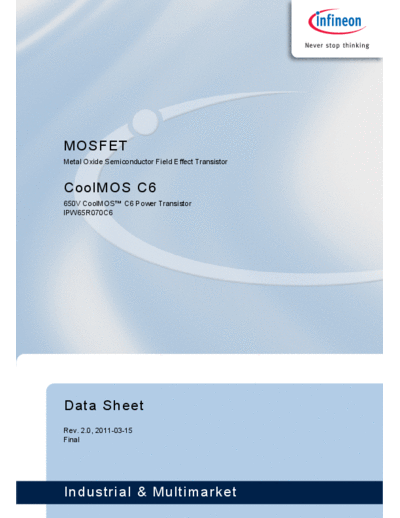

Image preview - the first page of the document



>> Download ipw65r070c6_2_0 documenatation <<

Text preview - extract from the document

MOSFET
Metal Oxide Semiconductor Field Effect Transistor


CoolMOS C6
650V CoolMOSTM C6 Power Transistor
IPW65R070C6




Data Sheet
Rev. 2.0, 2011-03-15
Final




Industrial & Multimarket
650V CoolMOSTM C6 Power Transistor                                                                IPW65R070C6



1             Description
CoolMOSTM is a revolutionary technology for high voltage power MOSFETs,
designed according to the superjunction (SJ) principle and pioneered by Infineon
Technologies. CoolMOSTM C6 series combines the experience of the leading SJ
MOSFET supplier with high class innovation. The offered devices provide all
benefits of a fast switching SJ MOSFET while not sacrificing ease of use.
Extremely low switching and conduction losses make switching applications
even more efficient, more compact, lighter, and cooler.
                                                                                                    drain
                                                                                                    pin 2

Features
