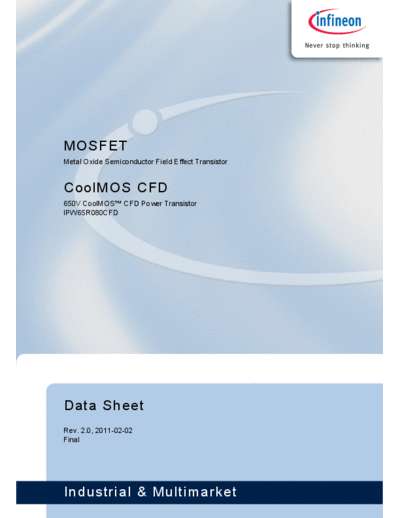

Image preview - the first page of the document
>> Download ipw65r080cfd_2_0 documenatation <<
Text preview - extract from the document
MOSFET
Metal Oxide Semiconductor Field Effect Transistor
CoolMOS CFD
650V CoolMOSTM CFD Power Transistor
IPW65R080CFD
Data Sheet
Rev. 2.0, 2011-02-02
Final
Industrial & Multimarket
650V CoolMOSTM CFD Power Transistor IPW65R080CFD
1 Description
CoolMOSTM is a revolutionary technology for high voltage power MOSFETs,
designed according to the superjunction (SJ) principle and pioneered by Infineon
Technologies. 650V CoolMOSTM CFD series combines the experience of the
leading SJ MOSFET supplier with high class innovation. The resulting devices
provide all benefits of a fast switching SJ MOSFET while offering an extremely fast
and robust body diode. This combination of extremely low switching, commutation
and conduction losses together with highest robustness make especially resonant
switching applications more reliable, more efficient, lighter, and cooler
drain
pin 2
Features gate
pin 1
