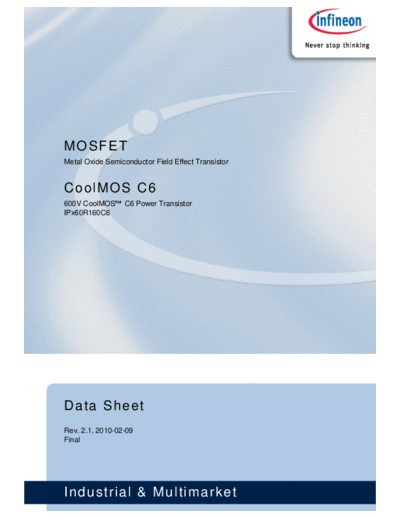

ipb60r160c6_2_1


>> Download ipb60r160c6_2_1 documenatation <<

Text preview - extract from the document
MOSFET
Metal Oxide Semiconductor Field Effect Transistor


CoolMOS C6
600V CoolMOSTM C6 Power Transistor
IPx60R160C6




Data Sheet
Rev. 2.1, 2010-02-09
Final




In d u s tr ia l & M u l ti m a r k e t
600V CoolMOSTM C6 Power Transistor                                           IPA60R160C6, IPB60R160C6
                                                                            IPP60R160C6 IPW60R160C6

1              Description
CoolMOSTM is a revolutionary technology for high voltage power
MOSFETs, designed according to the superjunction (SJ) principle
and pioneered by Infineon Technologies. CoolMOSTM C6 series
combines the experience of the leading SJ MOSFET supplier with
high class innovation. The offered devices provide all benefits of a
fast switching SJ MOSFET while not sacrificing ease of use.
Extremely low switching and conduction losses make switching
applications even more efficient, more compact, lighter, and cooler.

Features
