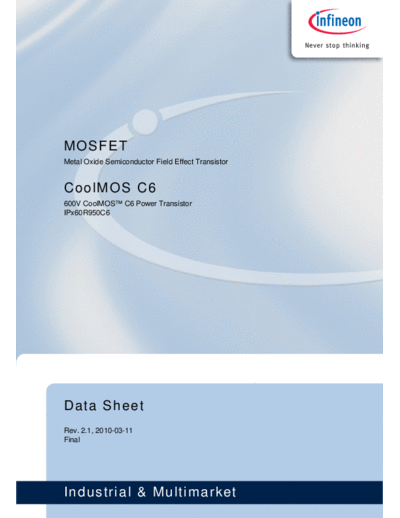

Image preview - the first page of the document



>> Download ipb60r950c6_2.1 documenatation <<

Text preview - extract from the document

MOSFET
Metal Oxide Semiconductor Field Effect Transistor


CoolMOS C6
600V CoolMOSTM C6 Power Transistor
IPx60R950C6




Data Sheet
Rev. 2.1, 2010-03-11
Final




Industrial & Multimarket
600V CoolMOSTM C6 Power Transistor                                          IPD60R950C6, IPB60R950C6
                                                                            IPP60R950C6, IPA60R950C6


1             Description
CoolMOSTM is a revolutionary technology for high voltage power
MOSFETs, designed according to the superjunction (SJ) principle and
pioneered by Infineon Technologies. CoolMOSTM C6 series combines the
experience of the leading SJ MOSFET supplier with high class innovation.
The resulting devices provide all benefits of a fast switching SJ MOSFET
while not sacrificing ease of use. Extremely low switching and conduction
losses make switching applications even more efficient, more compact,
lighter, and cooler.
